BD Vape Rayden 100 V1.5 Kit

BD Vape, a High-End subsidiary of Fumytech, comes back with its Rayden 100 mod, combined with the Precisio Sub-Ohm clearomizer.

The result? A high-quality kit with the performing XT ULTRA 1.2 chipset, particularly meant for enthusiasts of airy draw in direct inhaling (DL).

The Rayden 100 mod is supplied by a 21700 battery (included), or 18650 with the adaptor included. BD Vape slides a 5,500mAh 21700 BD-Pro XT55 battery in the pack!

The manufacturer associates this electronic mod with a Precisio Sub-Ohm clearomizer, made to receive the BDC coils by BD Vape (0.3 or 0.15ohm). Its tank has a capacity of 4.5ml e-liquid with the bulb Pyrex or 2ml with the straight Pyrex included in the box.

The Precisio Sub-Ohm offers a top-filling system and an efficient top airflow.

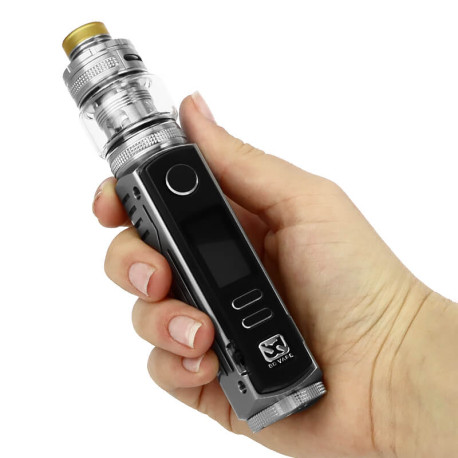

BD Vape's Rayden 100 kit

The design of Rayden 100 kit

The kit presents dimensions of 140x30mm for a weight of 198g.

The mod is made in zinc alloy and aluminum alloy which gives optimal ergonomy and easy handling.

Find from top to bottom on the main side:

• 1 Fire button
• 1 0.96" OLED screen
• 2 setting buttons

On either side of this front, you will also find:

• 1 ON/OFF button
• 1 USB-C port

Handling of BD Vape's Rayden 100 kit

How does the Rayden 100 kit work?

The electronic mod takes a performing chipset ensuring an intuitive use: the XT ULTRA 1.2 chipset.

Through the OLED screen and the setting buttons, you can choose between:

• Power mode: manual power setting up to 100W
• Bypass mode: use your mod like a mechanical mod by benefiting electronic safeties
• Soft/Norm/Hard mode: automatic power setting according to the value of coil installed in your clearomizer

The screen of BD Vape's Rayden 100 mod

To turn or off your mod, BD Vape equips it with an ON/OFF button, allowing you to easily lock it during its transport.

The ON/OFF button on BD Vape's Rayden 100 kit

A 21700 battery included with your kit

The Rayden 100 has a single battery compartment that can hold a 21700 battery or an 18650 battery thanks to the adaptor included.

In the kit's box, BD Vape includes a 21700 battery allowing you to use this kit upon its receipt.

To insert your battery, you only have to unscrew the button under the mod and slide it into the trapdoor while respecting the polarity directions indicated.

The single battery compartment of BD Vape's Rayden 100 kit

You don't have any charged battery available? Get the USB-C cable included and connect it to the port, located on the bottom part of the mod.

Please note that we recommend that you use an external charger (not included) whenever possible to recharge your batteries, in order to preserve their lifespan.

The USB-C port of BD Vape's Rayden 100 kit

The Precisio Sub-Ohm clearomizer

BD Vape made this Rayden 100 kit for all enthusiasts of airy vape. For this, they matched it with the Precisio Sub Ohm, a clearomizer flavor and vapor oriented.

Already equipped with a 4.5ml bulb tank, you can replace the latter with the straight Pyrex of 2ml included in the kit's box.

The Precisio Sub Ohm clearomizer of BD Vape's Rayden 100 kit

The BDC coils

BD Vape delivers your kit with two BDC coils, to select according to your draw preferences:

• 1 0.15ohm BDC coil (pre-installed): to use between 60 and 75W (70W power recommended) for a very airy vape
• 1 0.3ohm BDC coil: to use between 40 and 60W (55W power recommended) for a slightly more tight draw

After two to three weeks of use, your coil will start to show some wear signs, such as a loss of flavors or a light burnt taste.

It will be time to replace it with a new one.

For this:

1. Unscrew the bottom part of Precisio Sub Ohm
2. Take the used coil off by slightly pulling it
3. Soak a new coil with some e-liquid drops
4. Insert the latter in its compartment
5. Screw the bottom part back on the clearomizer

Wait for some minutes before vaping it so the new coil is correctly primed with e-liquid.

The top airflow of Precisio Sub Ohm

The Precisio Sub Ohm presents a system of air intake settings by the top, limiting risks of leaks.

To customize your vape experience, make the ring pivot on the top part of the tank. You'll alternate between a very airy draw and a bit more tight vape.

The top airflow of BD Vape's Precisio Sub Ohm clearomizer

How to fill the tank?

After the top airflow, here is the top filling system!

Whether it is with the 4.5ml bulb Pyrex or the 2ml straight Pyrex, the Precisio Sub Ohm benefits from a top-filling system.

When the time comes to fill it with e-liquid, get a bottle with a dropper tip, then:

1. Unscrew the top cap, being the top part of the clearomizer
2. Insert the bottle tip into the filling hole
3. Pour your e-liquid up to three-quarters
4. Carefully close the top cap

Reminder, wait for 5 to 10 minutes before vaping if you use a new coil.

The filling of the Precisio Sub Ohm clearomizer of BD Vape's Rayden 100 kit

Box contents

• 1 Rayden 100 mod
• 1 4.5ml Precisio Sub Ohm clearomizer
• 1 2ml straight Pyrex
• 1 0.15ohm BDC coil (pre-build)
• 1 0.3ohm BDC coil
• 1 spare 810 drip tip
• 1 5,500mAh 21700 BD-Pro XT55 battery
• 1 USB-C cable
• 1 set of spare pieces
• 1 user guide

The Rayden 100 kit is made by BD Vape.

Box contents of BD Vape's Rayden 100 kit
