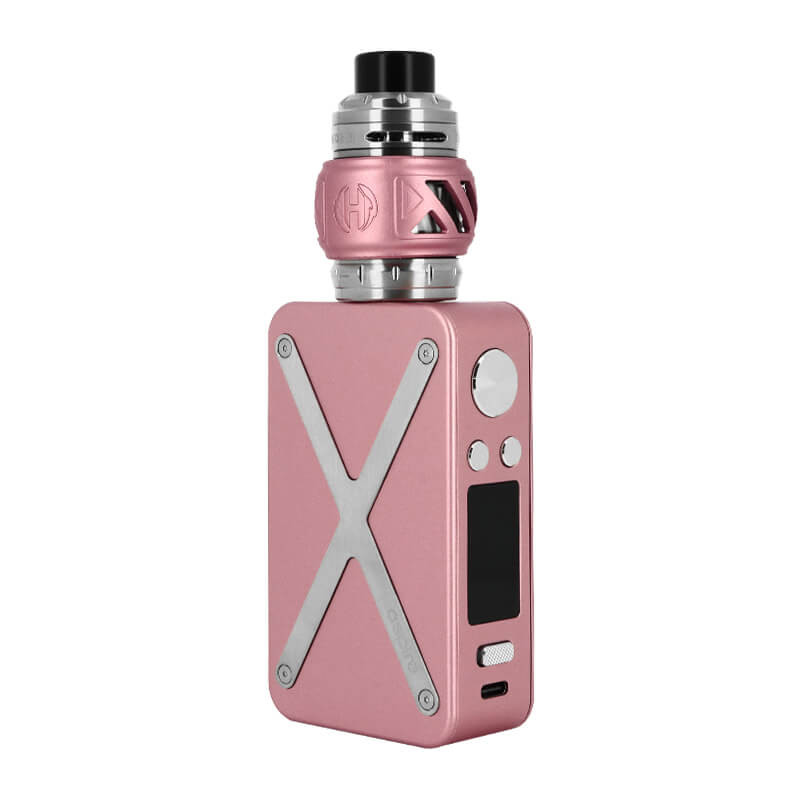

Aspire Revolto Kit

Aspire comes back with an all-in-one kit with 18650 dual batteries!

Composed of a Revolto mod and a legendary Huracan clearomizer, this electronic cigarette is particularly meant for enthusiasts of airy draw in direct inhaling (DL).

Delivering a maximum power of 220W, the Revolto mod has a TFT color screen giving you access to several setting modes.

The Revolto kit combines capacity, power, and elegance in a flawless conception by the giant Aspire.

Aspire's Revolto kit

A harmonious kit

Mixing the Revolto mod with the Huracan clearomizer, Aspire has a harmonious and modern design.

Made in aluminum alloy, the electronic mod has two magnetic panels with one for the dual battery compartment.

The main side has from top to bottom:

• The Fire button
• The setting buttons
• The color TFT screen
• The ON/OFF switch
• The USB-C recharging port

Perfectly screwed on the 510 pin, the Huracan clearomizer has a 6ml Pyrex bulb protected by a vape band.

The assembly gives a kit with dimensions of 141.6x53.7x27mm for a perfect ergonomy of its use.

Handling of Aspire's Revolto kit

A versatile mod

According to your vape preferences, select the functioning mode that will suit you:

• WATT mode: adjust the delivered power from 5 to 220W
• VOLTAGE mode: set the intensity from 0.5 to 9V
• BYPASS mode: your Revolto mod delivers the maximum power on the coil installed on your clearomizer while benefiting the electronic safeties of the chipset
• CPS mode: this regulation mode allows setting a power curve for each puff
• TC mode: set the temperature according to the coil wire installed. This mode is only used if you exchange the Huracan clearomizer against an RBA equipment (Atomizer or dripper)

The TFT color screen of Aspire's Revolto kit

Tip: your Revolto kit has an ON/OFF switch that will allow you to turn on and off the equipment.

The ON/OFF switch of Aspire's Revolto kit

Aspire bets on capacity!

To supply your Revolto kit, slide two 18650 batteries (not included) in the right compartment.

For this, lift one of the two magnetic panels then insert your batteries while respecting the polarity sense indicated on the compartment bottom.

The 18650 dual battery compartment of Aspire's Revolto kit

Aspire gave a USB-C port to this kit so you can easily recharge it with spare batteries. Take a USB-C cable included and connect it to the port located below the ON/OFF switch.

We recommend using an external charger (not included) to extend the lifespan of your batteries.

The USB-C port of Aspire's Revolto kit

The Huracan clearomizer

Real reference in direct inhaling (DL), the Huracan clearomizer is on the Revolto mod.

Its 6ml bulb tank and its 810 drip tip are meant for an airy vape and are compatible with the famous BP Coil coils.

The Huracan clearomizer of Aspire's Revolto kit

The BP Coil coils

Your Revolto kit is delivered with two coils:

• 1 0.3ohm BP Coil Meshed (pre-installed): to use between 30 and 40 watts
• 1 0.17ohm BP Coil Meshed: to use between 45 and 55 watts

Don't hesitate to get a pack of spare BP Coil coils with the value of your choice!

After two to three weeks of use, your coil will start to show some signs of wear with a loss of flavors or a light burnt taste. It is time to replace it with a new one.

For this:

1. Take the low part of the tank out by unscrewing it
2. Pull on the used coil
3. Soak a new coil of some drops of e-liquid
4. Insert it in the same place as the old one
5. Screw the low part of your clearomizer
6. Fill it with e-liquid
7. Wait for 5 to 10 minutes before vaping so the coil is correctly primed

Adjustable airflows

Aspire gives the possibility to adjust the airflow of your clearomizer thanks to a system of top airflow settings.

For this, use the wheel located on the top part of the tank: turn this ring from right to left to free more or less the two large airflow windows.

The more the holes are open, the more the draw is airy.

The airflow ring of the Huracan clearomizer of Aspire's Revolto kit

A 6ml top-filling bulb tank

Did you just receive your Revolto kit and do you wish to fill the tank?

Start by getting an e-liquid bottle, then:

1. Unscrew the top cap of the clearomizer from a quarter-turn (top part connected to the drip tip)
2. Insert the bottle tip in one of the two filling holes
3. Pour your e-liquid up to three-quarters of the tank: don't pour something down the central chimney
4. Close the top cap

Reminder: wait for some minutes before vaping if you use a new coil.

The top filling of Huracan clearomizer of Aspire's Revolto kit

Box contents

• 1 220W Revolto mod
• 1 6ml Huracan clearomizer with 810 drip tip
• 1 spare bulb Pyrex
• 1 0.3ohm BP Coil Meshed coil (pre-installed)
• 1 0.17ohm BP Coil Meshed coil
• 1 vape band (pre-installed)
• 1 USB-C cable
• 1 bag of spare pieces
• 1 user guide

The Revolto kit is made by Aspire. It is sold without batteries.

Box contents of Aspire's Revolto kit
