Flatwire UK FlatSixty Coil Wire

The FlatSixty is a high-performance flat coil wire designed to generate dense vapor production with optimal delivery of flavors.

Intended for experienced vapers, it combines an optimized heating surface, high responsiveness, and excellent performance at high power.

Manufactured by FlatWire UK, FlatSixty is available in 19G (0.912mm), 20G (0.80mm), 21G (0.72mm), and 24G (0.50mm).

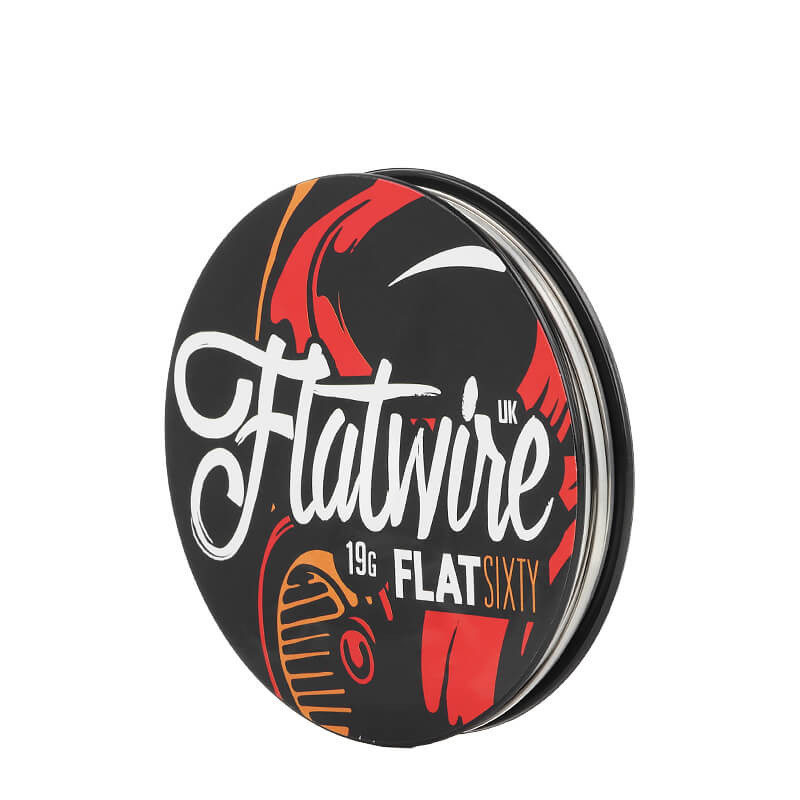

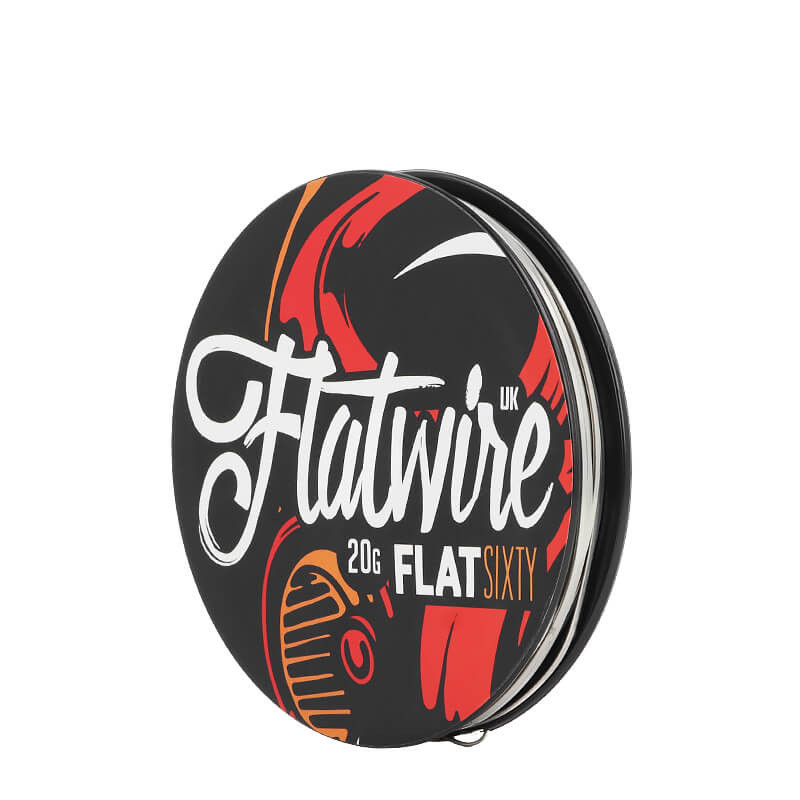

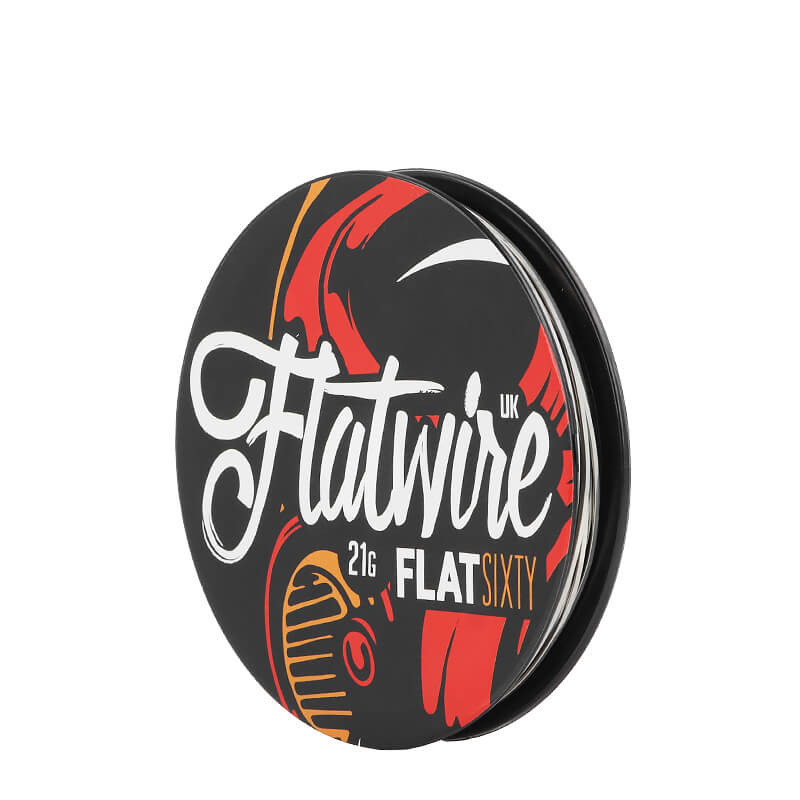

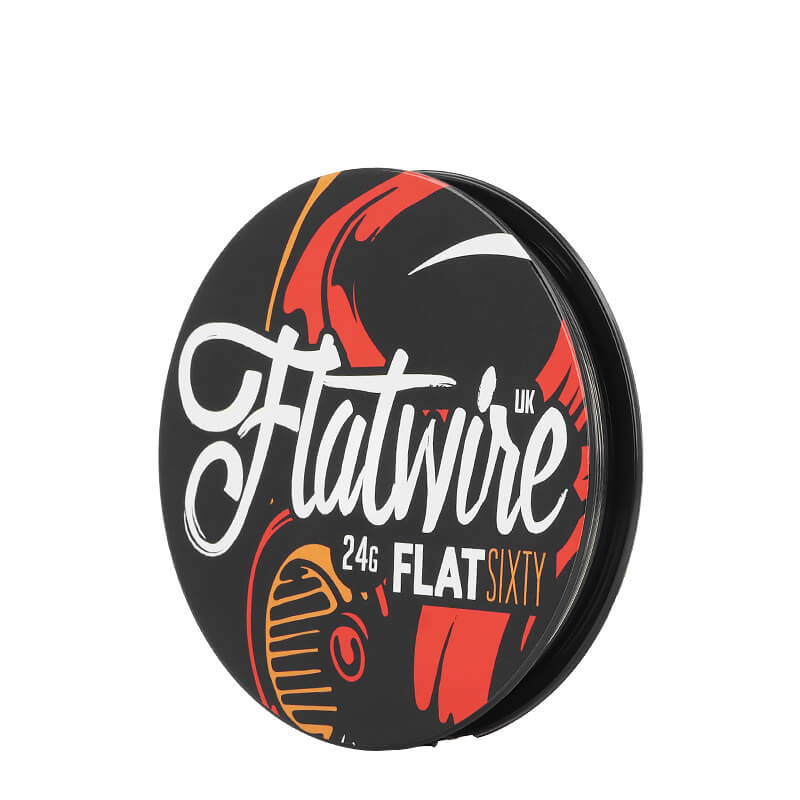

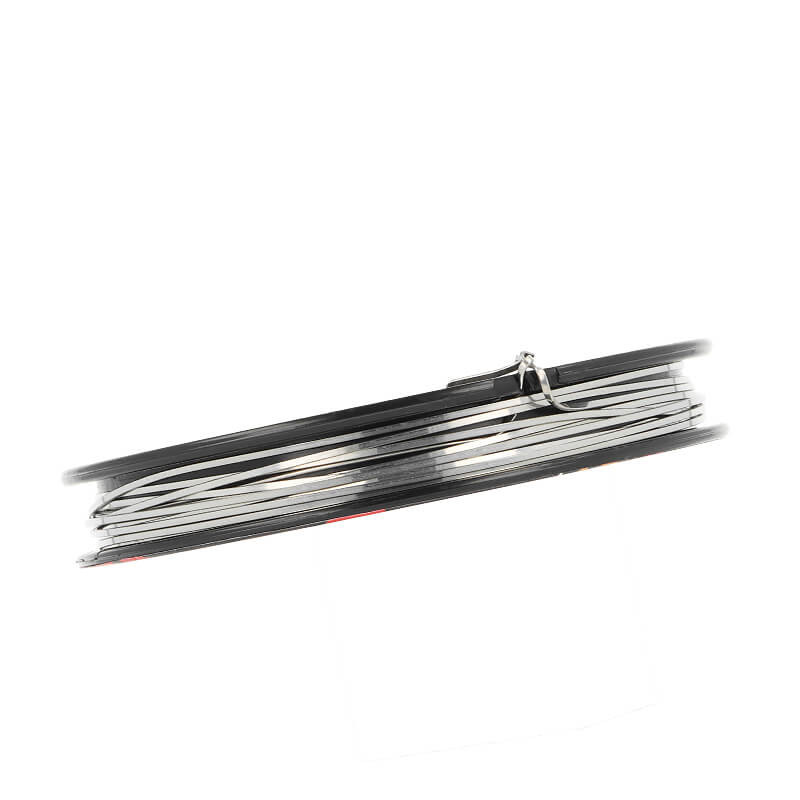

Flatwire UK's FlatSixty bobbin

3 meters of coil wire

The English manufacturer Flatwire UK offers no less than 3 meters of wire for making your own coils.

FlatSixty is made from an HW6015 alloy, made from 62% nickel, 14% chromium, and stainless steel.

This coil wire is known for offering a larger heating surface than traditional round wires.

By choosing FlatSixty, you are opting for:

• Rapid temperature rise
• High vapor production
• Excellent rendering of flavors

Particularly adjusted to your sub-ohm vape, FlatSixty wire supports high power while ensuring even heating, a pronounced hit, and optimal restitution of flavors.

Characteristics

• HW6015 (Ni 62%, Cr14%, stainless steel)
• Shape: flat
• Recommended power: 35W to 100W (according to your build)
• Wire length: 3 meters

Use recommendations

ID 2.5mm - single coil (ends 10mm):

• 19G (0.912 mm): 0.090Ω (4 spires) / 0.108Ω (5 spires) / 0.126Ω (6 spires)
• 20G (0.80 mm): 0.114Ω (4 spires) / 0.137Ω (5 spires) / 0.159Ω (6 spires)
• 21G (0.72 mm): 0.138Ω (4 spires) / 0.165Ω (5 spires) / 0.193Ω (6 spires)
• 24G (0.50 mm): 0.270Ω (4 spires) / 0.323Ω (5 spires) / 0.376Ω (6 spires)

ID 3.0mm - single coil (ends 10mm):

• 19G (0.912 mm): 0.101Ω (4 spires) / 0.121Ω (5 spires) / 0.142Ω (6 spires)
• 20G (0.80 mm): 0.128Ω (4 spires) / 0.154Ω (5 spires) / 0.180Ω (6 spires)
• 21G (0.72 mm): 0.155Ω (4 spires) / 0.187Ω (5 spires) / 0.218Ω (6 spires)
• 24G (0.50 mm): 0.305Ω (4 spires) / 0.367Ω (5 spires) / 0.429Ω (6 spires)

The FlatSixty is meant for expert vapers, mastering builds with low coils. Its rigidity requires careful build, preferably using a coil jig.

FlatSixty resistive wire is manufactured by Flatwire UK.
