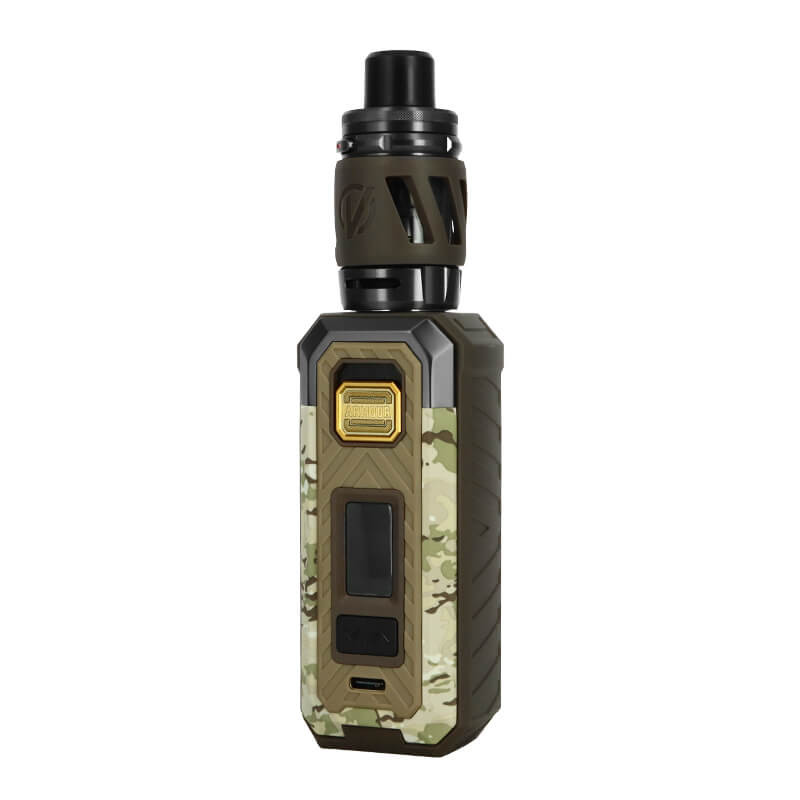

Vaporesso Armour S Kit

Blow massive clouds of vapor thanks to the Armour S kit from Vaporesso. Discover this incredible kit in an unboxing video!

Discover a sturdy and high-performance kit from Vaporesso! The Armour S kit is an electronic cigarette that can deliver up to 100W thanks to a single 21700 battery (not included).

This kit includes the Armour S mod and the famous iTank 2 clearomizer; in other words, you'll enjoy a purely airy vaping experience!

Vaporesso's Armour S kit

A sturdy and modern design!

The daredevils among you will love Vaporesso's Armour S, a sturdy and high-performance kit with a stunning design.

Made from stainless steel and thermoplastic (TPU), this kit is drop-proof thanks to its great sturdiness.

This massive kit made up of the Armour S kit and the iTank 2 clearomizer offers an avant-garde design.

With its 41.9x154.8x36mm size and 262g weight (without the battery), the Armour S kit is pretty light for its size and pleasant to handle.

From top to bottom, the main side of your mod is adorned with:

• A Fire button that also serves as a lock button
• A 0.96" TFT screen
• 'Up' and 'Down' adjustment buttons
• A USB-C charge port

Handling Vaporesso's Armour S kit

4 modes and up to 100W

Press the Fire button 5 times in a row to switch on/off your Armour S mod.

Press this same button 3 times in a row to open the menu and select your vaping mode thanks to the 0.96" TFT screen:

• F(t) mode: the default mode that allows you to adjust the power from 5 to 100W
• PULSE mode: enjoy a constant hit throughout the puff and an excellent flavor rendering
• ECO mode: extends the battery life
• TC mode (Ni, Ti, SS): this mode allows you to adjust the temperature to the coil wire type you're using, especially if you're combining your Armour S mod with an atomizer

Vaporesso also innovates by offering you two ingenious lock systems:

• Easy lock: slide the Fire button upward to lock it
• Press the 'Up' and 'Down' buttons simultaneously to lock the whole mod

The 0.96" TFT screen of Vaporesso's Armour S kit

A great capacity thanks to a single 21700 battery

If this sturdy mod can provide up to 100 watts, it's because it is powered by a single 21700 battery (sold separately). Open the battery compartment located below the mod by pressing the lock button on the side.

Refer to the '+' and '-' marks inside the compartment to insert your battery properly.

Note that the box includes an 18650 adaptor if you prefer powering your kit with an 18650 battery.

The single-battery compartment of Vaporesso's Armour S kit

If you're running out of battery, you'll be happy to learn that your kit is fitted with a handy backup charge way: a USB-C port into which you must plug the USB-C cable included in the box!

However, we recommend you charge your batteries with an external charger to preserve their durability.

The USB-C port of Vaporesso's Armour S kit

The iTank 2 clearomizer: designed for DL vaping!

Vaporesso decided to delight all massive vapor cloud enthusiasts once more with the iTank 2 clearomizer. It is fitted with a 5ml Pyrex and an elegant 810 drip tip, the perfect combo to enjoy an airy vaping experience! Ideal for vaping with a direct inhale (DL), this clearomizer also comes with a spare 8ml bulb Pyrex.

Extremely sturdy, this great clearomizer from Vaporesso is coated in TPU, a material that effectively protects the Pyrex against potential drops!

You can also fit the 8ml bulb Pyrex of your clearomizer with a TPU Armour Protection (sold separately) to protect it against impacts and drops.

Vaporesso's iTank 2 clearomizer

Compatibility with the GTi coils

Enjoy a purely airy vaping experience thanks to the iTank 2 clearomizer and its famous GTi coil, specially designed for direct inhaling (DL).

The Armour S kit is delivered with 2 GTi coils:

• One 0.2ohm GTi MESH coil: to be used between 60 and 75W
• One 0.4ohm GTi MESH coil: to be used between 50 and 60W

Once your coil has worn out, replace it as follows:

1. Remove the clearomizer from the mod
2. Unscrew the lower part of the iTank 2 (near the airflow)
3. Remove the worn-out coil
4. Take a new coil and soak it with a few drops of e-liquid, then insert it into the dedicated slot
5. Screw back the lower part of the clearomizer
6. Put the iTank 2 back onto the Armour S mod
7. Fill the tank with e-liquid and wait for about 10 minutes to make sure the new coil is primed

An ingenious bottom-airflow system

Vaporesso fitted the iTank 2 with a handy airflow ring that allows you to adjust the draw to your liking.

This bottom-airflow system is comprised of 2 large air intakes, offering you the possibility to switch between a very airy draw (DL) to a slightly more restricted draw (RDL).

The airflow ring of Vaporesso's iTank 2 clearomizer

A great 5ml tank with a top-fill system

Even though your iTank 2 clearomizer offers you to enjoy up to 5ml of e-liquid, you'll need to refill it with e-liquid from time to time.

Simply proceed as follows:

1. Push the button on the iTank 2's top cap to access the filling port
2. Insert the tip of your e-liquid bottle into the port and fill the tank three-quarters full
3. Close the top cap
4. If you use a new coil, wait for about 10 minutes before vaping to make sure it is primed

The top-fill system of Vaporesso's iTank 2 clearomizer

Contents of the box

• One Armour S mod
• One iTank 2 clearomizer
• One 0.2ohm GTi MESH coil
• One 0.4ohm GTi MESH coil
• One 8ml bulb Pyrex
• One set of spare parts
• One 18650 adaptor
• One USB-C cable
• One user guide

The Armour S kit is manufactured by Vaporesso. It is delivered without any batteries.

Contents of the box of Vaporesso's Armour S kit
