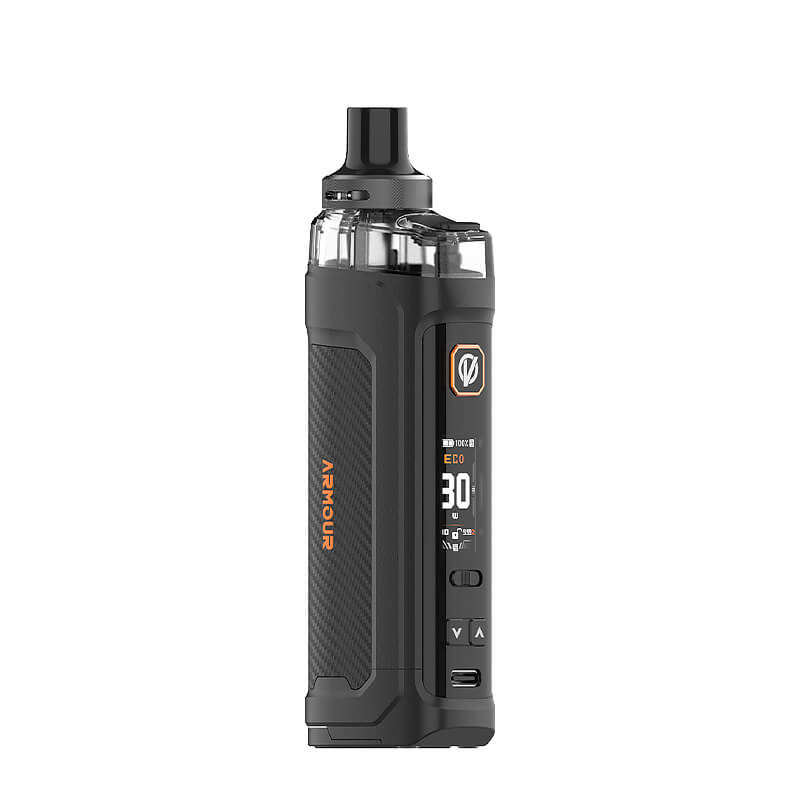

Vaporesso Armour GS2 Podmod

Vaporesso presents Armour GS 2.0, an e-cigarette powered by an 18650 battery (not included).

This kit is designed for an airy direct-lung (DL) draw and delivers a maximum power output of 80W.

It features the Armour GS 2.0 DTL cartridge, designed to accommodate interchangeable GTX coils.

The Armour GS2 podmod features a color TFT screen.

Its Axon chipset offers various operating modes, including power adjustment.

This e-cigarette also includes a lock switch and an automatic lock system.

The design of the Armour GS2 podmod

The Armour GS2 podmod is made of a zinc-aluminum alloy and measures 126x39x28mm.

Its rounded body features a front side that houses the 0.96"color TFT screen, the control buttons, the lock switch, and the USB-C port.

The Armour GS2 features a customizable interface that lets you choose from three themes: Classic, Meteor, and Engine.

How does the Armour GS2 work?

To vape, press the power button and inhale through the cartridge's mouthpiece.

The Axon 4.0 chipset controls three operating modes, which you can select based on your desired vaping experience:

• PULSE Mode: The chipset delivers consistent power for steady puffs
• SMART Mode: Automatic power adjustment based on the installed coil, from 5 to 80W
• ECO Mode: The chipset sets an optimal power level to conserve battery life

The Armour GS2 kit also features two locking systems:

• Manual lock using the switch located just below the screen
• Automatic lock after three minutes of inactivity

Battery life with a 18650 single battery

The Armour GS2 podmod has a compartment for a single 18650 battery (sold separately).

The battery life of your e-cigarette will depend on the battery's capacity, the power setting, and the frequency of your puffs.

To access the battery compartment, lift the latch located under the podmod.

Be sure to insert the battery with the correct polarity.

USB-C charging supported

Ran out of battery?

Use the USB-C cable included in the box to recharge your e-cigarette.

The USB-C port is located on the front side of the Armour GS2, below the control buttons.

However, we recommend using an external charger for your battery whenever possible, particularly to help preserve its lifespan.

A 5ml cartridge

The Armour GS2 podmod features a tank with a 5ml e-liquid capacity.

This Armour G2 cartridge is specially designed to accommodate Vaporesso's GTX coils.

The kit comes with two GTX coils, designed for an airy draw with direct lung (DL) vaping:

• 1 GTX Dual Mesh 0.3 ohm coil: for use between 32 and 45W
• 1 GTX Dual Mesh 0.15 ohm coil: for use between 60 and 75W

Vaporesso recommends using e-liquids containing at least 50% vegetable glycerin (VG) with these settings.

How do I replace the coil?

After two to three weeks of use, your coil will show signs of wear, such as a loss of flavor or a slight burnt taste.

It will then be time to replace it with a new one.

To do this, make sure the tank is empty, then:

1. Remove the cartridge from its magnetic base
2. Pull out the used coil
3. Soak a new coil with a few drops of e-liquid
4. Then insert it into its slot in place of the old one
5. Fill the tank with e-liquid
6. Replace the cartridge on its base
7. Wait a few minutes before vaping to allow the coil to prime properly

Adjustable airflow

The airflow control located at the top of the cartridge allows you to adjust the airflow directed to the coil.

Simply use the dial to open or close the vents: the more air you let in, the airier your draw will be.

The Armour GS2 podmod features Vaporesso's SSS 2.0 technology, designed to minimize e-liquid leaks.

How do you fill the tank?

The Armour G2 cartridge is filled from the top, without having to detach it from the Armour GS2 podmod.

Follow the steps below to fill it quickly and easily:

1. Lift the silicone membrane located at the top of the cartridge
2. Insert the narrow tip of your bottle into the fill port
3. Gently pour in your e-liquid
4. Carefully close the silicone cap

As a reminder, wait 5 to 10 minutes before vaping if you’re using a new coil.

Box contents

• 1 Armour GS2 podmod
• 1 Armour G2.0 DTL cartridge
• 1 0.3ohm GTX Dual Mesh coil
• 1 0.15ohm GTX Dual Mesh coil
• 1 USB-C cable
• 1 user guide

The Armour GS2 podmod is made by Vaporesso.
