Early Bird Series Turnstone RDA Deck

Are you an expert in rebuildable and do you already have the Turnstone RDA from the brand Early Bird? Here is the Series Turnstone RDA deck specially made to customize the use of your dripper, thanks to its dual coil build in series.

This alternative deck enables you to change the original deck and exploit the power of your atomizer in a new way.

Made in stainless steel, it also benefits from a sturdy construction made to resist thermal conditions associated with rebuildable builds.

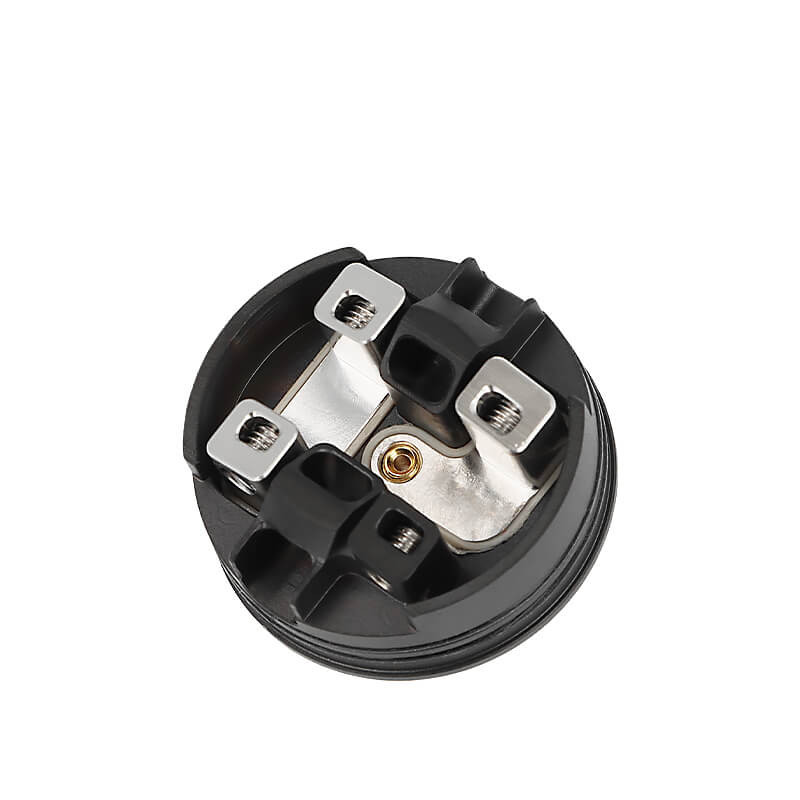

Early Bird's Series Turnstone RDA deck

A dual coil build deck in series

This deck, exclusively compatible with the Turnstone RDA 30mm by Early Bird, has dimensions of the dripper to ensure a simple and safe build in place of the old one.

Contrary to the standard deck delivered with the dripper, this version offers a dual coil build in series: the current flows successively through the two coils installed on the deck, resulting in the ohmic values being added together.

This configuration involves a large mass of metal to be heated, requiring higher voltage and power to operate the setup and produce denser vapor.

For example, if you install two coils of 0.30ohm each, the resulting total resistance is 0.60ohm. Conversely, in a standard parallel setup, these same coils yield a value of approximately 0.15ohm.

Note: It is generally recommended to aim for a final resistance between 0.5ohm and 0.8ohm in a dual-coil series setup (i.e., two coils of 0.25ohm to 0.40ohm each), using a compatible mod (ideally a dual-battery mod or stacked mechanical mod) capable of delivering the necessary voltage (8.4V).

A BF pin and a 510 pin included

The Turnstone RDA deck comes with a pre-installed BF (bottom-feeder) pin, specifically designed for squonk use.

This convenient, perforated pin allows e-liquid to be fed directly through the 510 connector, effectively saturating the cotton from the bottle built into your mod.

Reminder: If you want to use bottom-feeding mode, your Turnstone RDA must be mounted on a BF (bottom-feeding) compatible mod.

The manufacturer, Early Bird, also provides a standard copper 510 pin for better conductivity and more traditional use of your dripper.

It’s up to you to adapt your dripper to your setup and preferences!

Box contents

• 1 Series Turnstone RDA deck by Early Bird
• 1 BF pin (pre-installed)
• 1 standard and copper 510 pin
• 1 set of spare seals and screws

The Series Turnstone RDA deck is made by Early Bird. It is only compatible with the Turnstone RDA 30mm dripper.

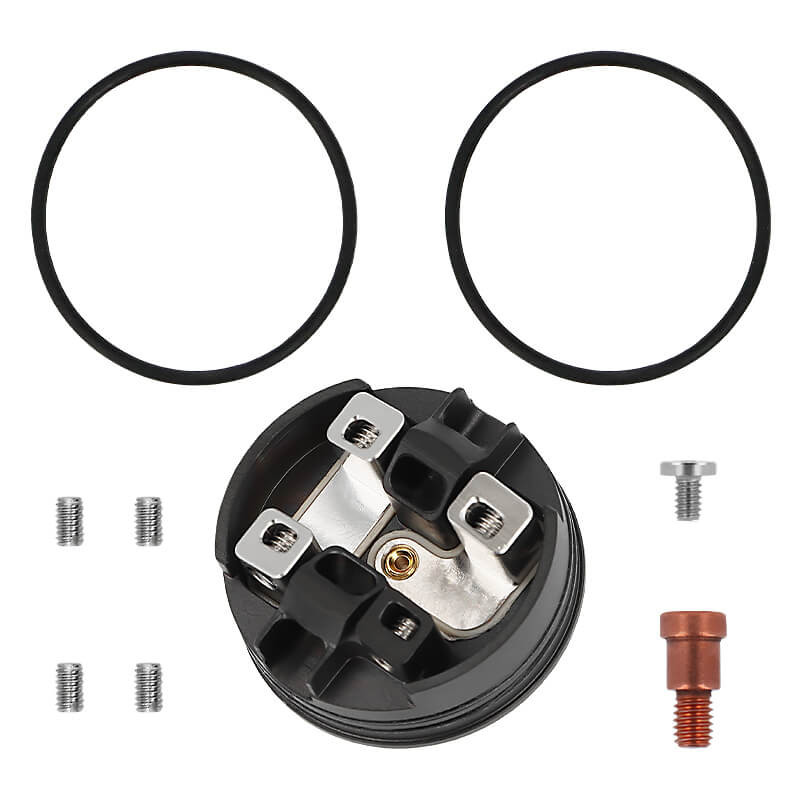

Box contents of Early Bird's Series Turnstone RDA deck
