Voopoo Drag 6 Kit

Specially made for the enthusiasts of airy draw in direct inhaling (DL), this electronic cigarette is the sixth version of the Drag kit.

Composed of the Drag 6 mod and the UForce X II clearomizer, this kit has a dual battery included (2x2,000mAh) for a total capacity of 4,400mAh.

Its performing Gene TT 3.0 chipset gives you access to multiple functioning modes, including a power setting up to 220W.

The mod also presents a capacitive switch, enabling you to lock and unlock the kit with a simple touch!

The UForce II clearomizer has a 5ml bulb tank, fillable through the top, and is compatible with all the PnP X coil collection.

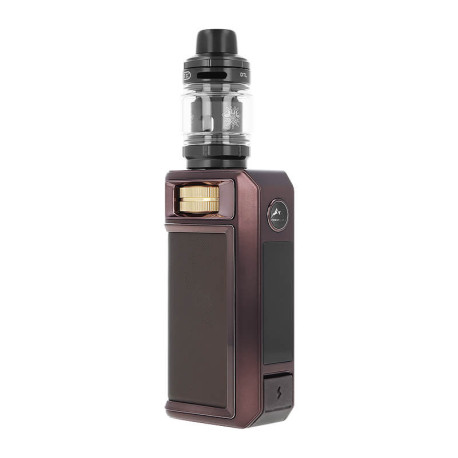

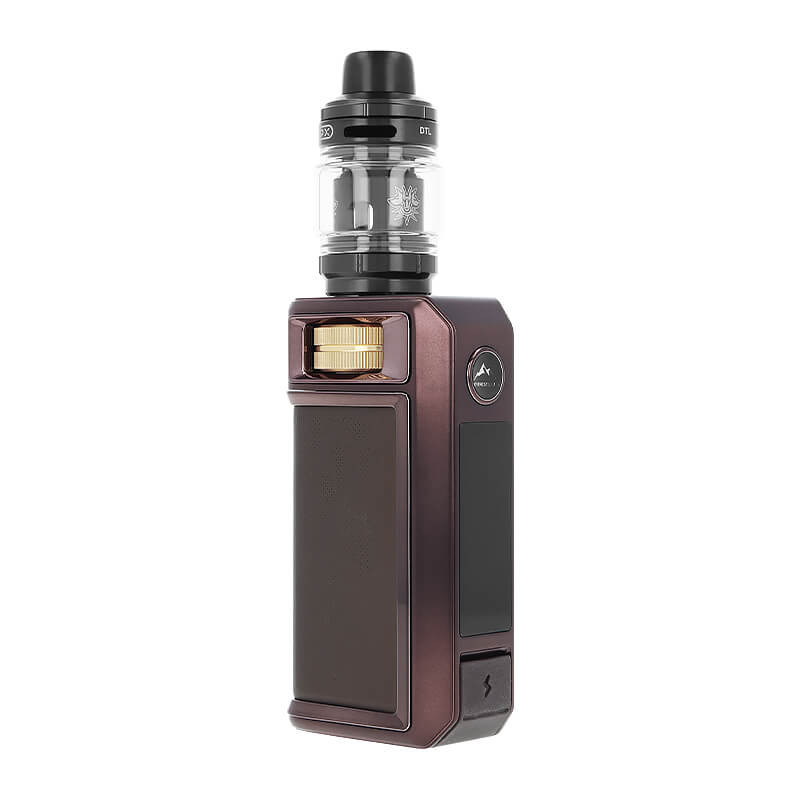

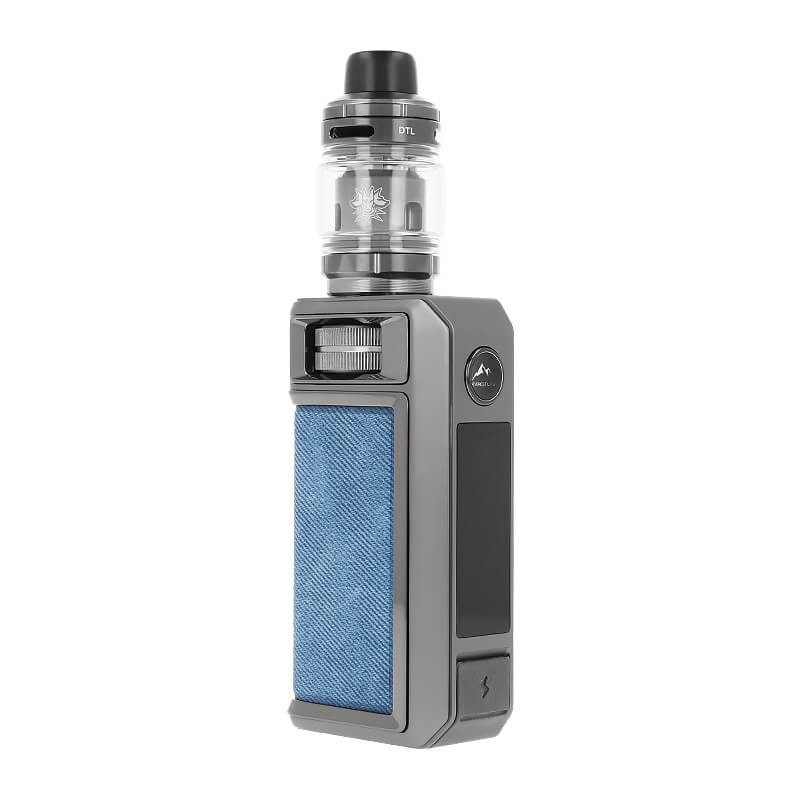

Voopoo's Drag 6 kit

The Drag 6 kit in details

The Drag 6 kit measures 150x51.4x28.6mm for a weight of 283g.

The mod in zinc alloy includes everything you need for a customizable and optimal vape experience.

On the main side, find from top to bottom:

• 1 Power button
• 1 1.66" TFT screen
• 1 3A USB-C port

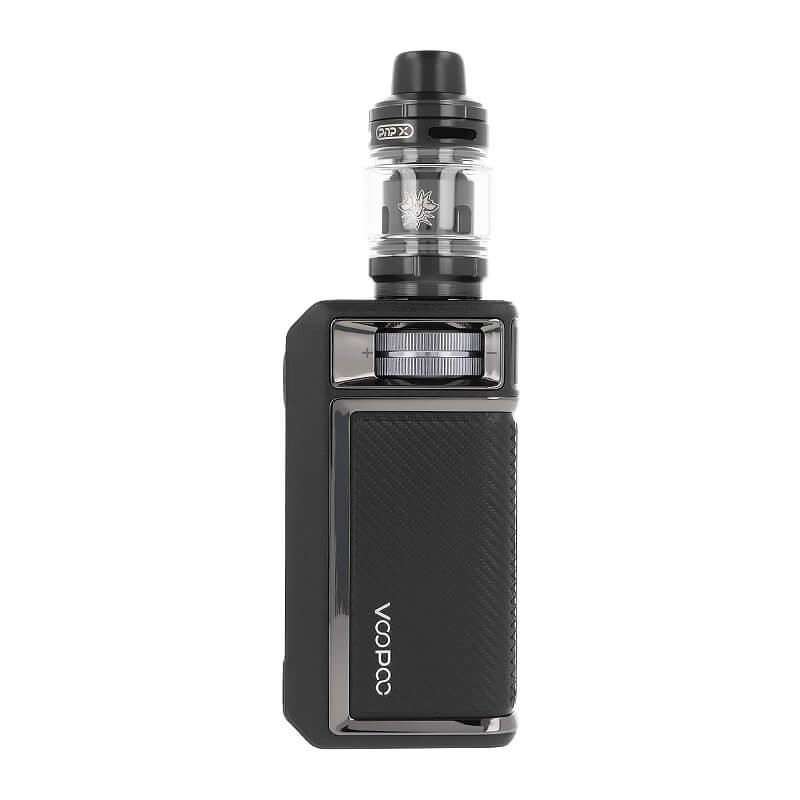

But that's not all! Also find a setting wheel at the top of the Drag 6, enabling you to easily and quickly adjust the power.

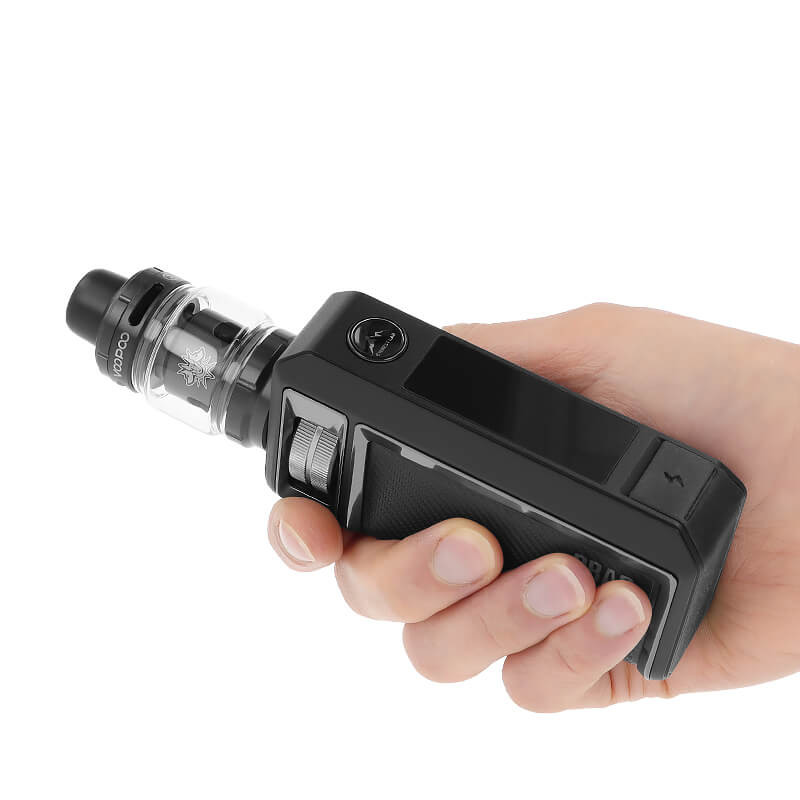

Handling of Voopoo's Drag 6 kit

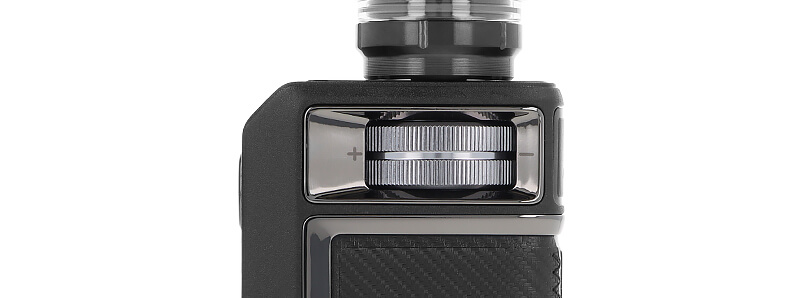

A convenient and well-placed wheel

For its Drag 6 kit, Voopoo has replaced the traditional "+" and "-" buttons with a metal wheel dedicated to the various settings of your mod.

Combined with the 1.6-inch TFT screen, this wheel allows you to select the operating mode that suits you best from the following options:

• SMART Mode: the Gene TT 3.0 chipset determines the power output based on the coil value installed in the UForce X II clearomizer
• RBA Mode: manually adjust the power from 5 to 220W
• TC-TCR Mode: manual temperature adjustment (200 to 600°F)

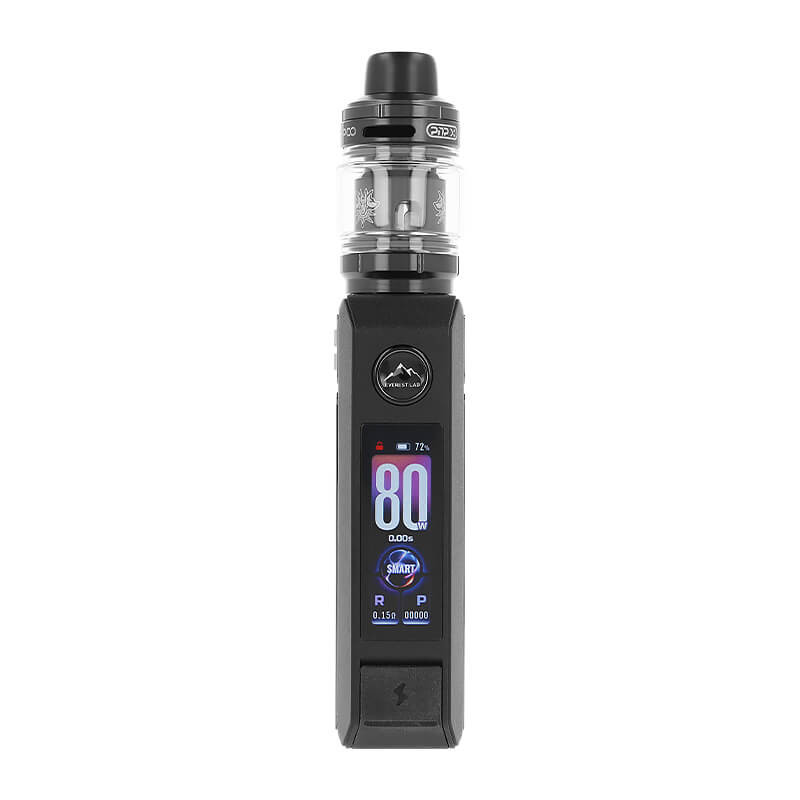

The screen of Voopoo's Drag 6 kit

A capacitive button for better safety

When it comes to locking, Voopoo has equipped the kit with a capacitive button.

So, as soon as the button detects your finger, the device unlocks!

Conversely, when you remove your finger from the button, the device locks automatically.

A dual battery system with a total capacity of 4,400mAh

For its Drag 6 kit, Voopoo has opted for a built-in dual battery system that is rechargeable via USB-C.

Each battery has a capacity of 2,200mAh, for a total capacity of 4,400mAh.

The charge level is displayed as a percentage on the mod’s screen.

When it’s time to recharge, use the cable included in the box and plug it into the 3A USB-C port located below the screen.

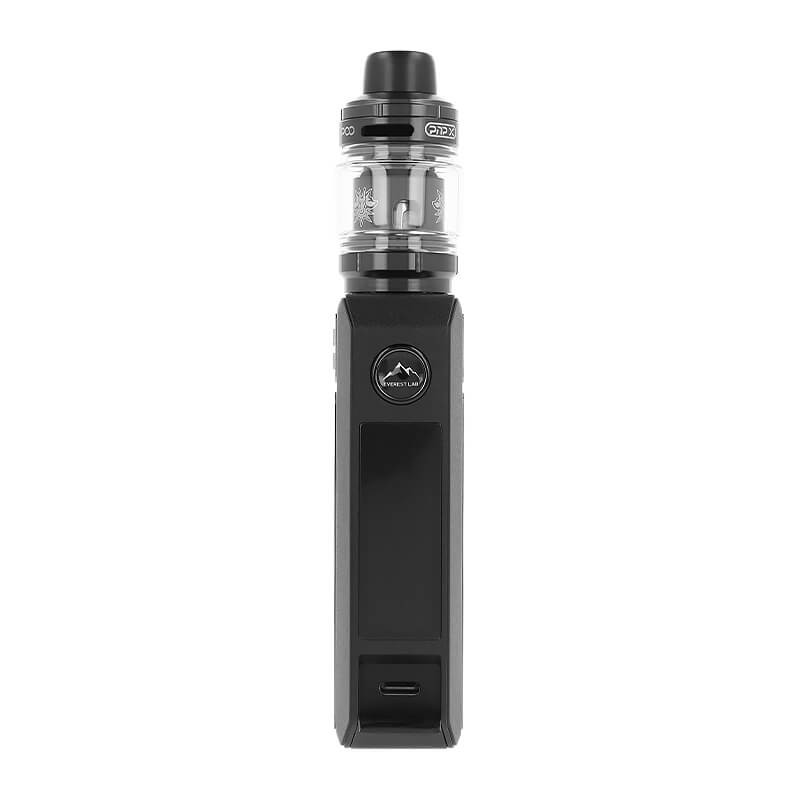

The USB-C port of Voopoo's Drag 6 kit

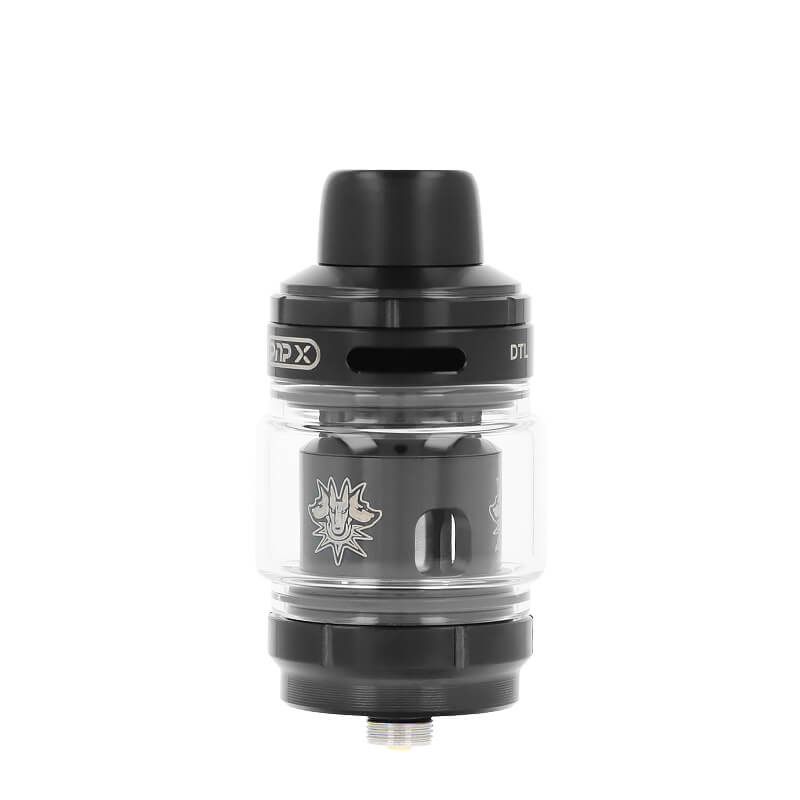

The UForce X II clearomizer

The UForce X II clearomizer is clearly designed for a smooth, airy vape, featuring an 810 drip tip and an efficient top airflow system.

Voopoo includes two PNP-X coils with the Drag 6 kit, rated at 0.15ohms and 0.3ohms.

This clearomizer features a convenient top-fill system, also known as topfill.

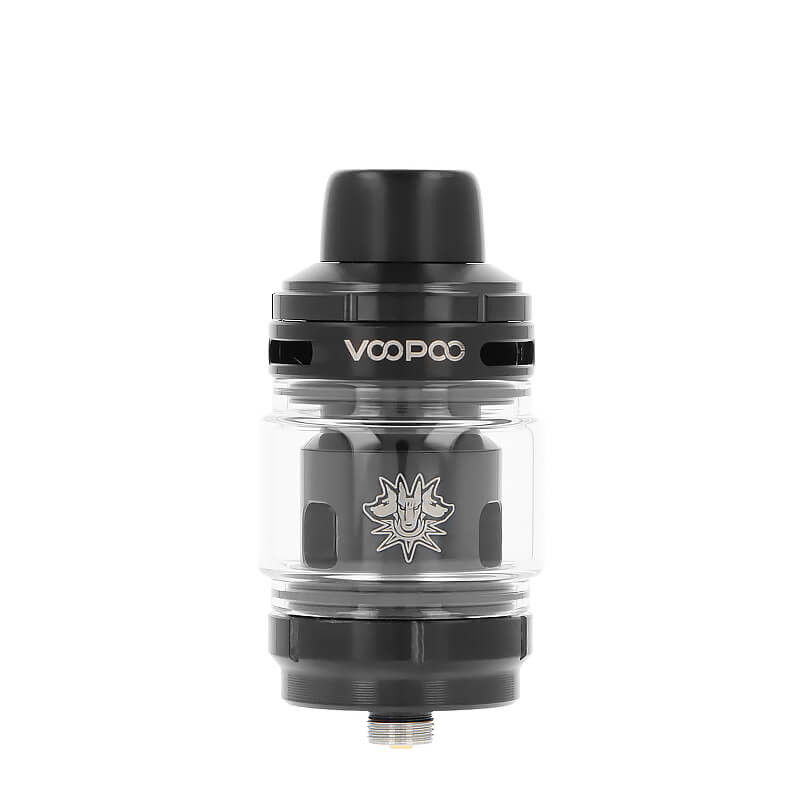

The UForce X II clearomizer of Voopoo's Drag 6 kit

High-performance PnP X coils

The UForce X II clearomizer is specifically designed to accommodate the manufacturer’s PnP X coils.

To ensure you can use your Drag 6 kit as soon as you receive it, Voopoo includes the following in the box:

• 1 PnP X 0.3ohm coil: to be used between 32 and 40W, for a relatively airy draw with restricted direct inhaling (RDL)
• 1 PnP X 0.15ohm V2 coil (pre-installed): to be used between 60 and 80W, for a very airy draw with direct inhaling (DL)

After two to three weeks of use, your coil will show some signs of wear (loss of flavor, slight burnt taste).

It will then be time to replace it with a new one.

To do so:

1. Remove the UForce X II from the Drag 6 mod
2. Unscrew the bottom section of the clearomizer
3. Pull on the used coil to remove it
4. Soak a new coil with a few drops of e-liquid
5. Then insert it into its slot in place of the old one
6. Screw the bottom section of the clearomizer back on
7. Reconnect the UForce X II to the Drag 6 mod
8. Wait 5 to 10 minutes to allow the coil to prime properly

A top-airflow clearomizer

Designed for an airy draw, the UForce X II is a top-airflow clearomizer.

In other words, the air intakes are located at the top, in the form of three vents.

A rotating ring allows you to adjust the opening of these vents to customize your vaping experience.

The more you restrict these vents, the tighter your draw will be.

The top airflow of Voopoo's Drag 6 kit

A top-fill clearomizer

Simple, convenient, and effective, the UForce X II’s top-fill system lets you easily and cleanly fill the 5ml bulb tank.

To do this, there’s no need to remove the clearomizer from the mod!

Grab your e-liquid bottle with a fine tip, then:

1. Unscrew the top cap a quarter turn
2. Insert the bottle tip into one of the two filling ports
3. Gently pour your e-liquid until the tank is three-quarters full
4. Screw the top cap back on

Is your coil new? Wait a few minutes before vaping so that it can properly soak up the e-liquid.

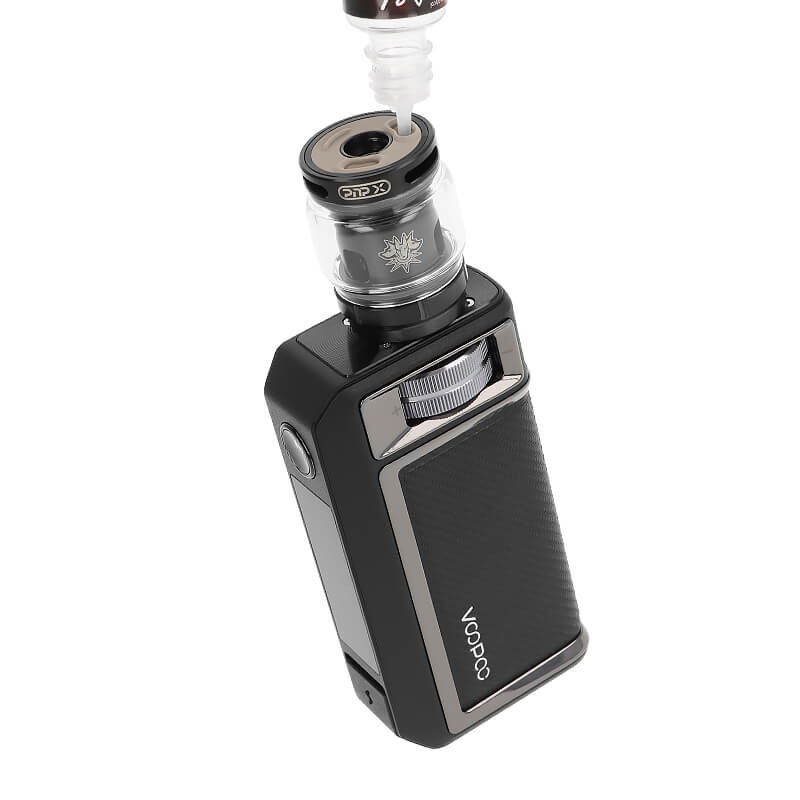

Filling the UForce X II clearomizer of Voopoo's Drag 6 kit

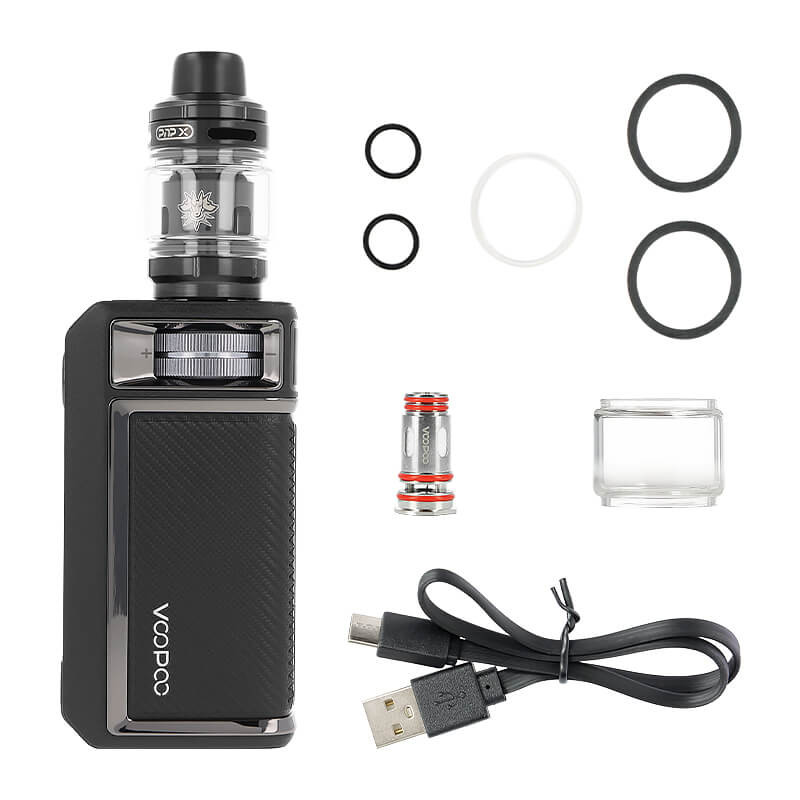

Box contents

• 1 4,400mAh 200W Drag 6 mod
• 1 5ml UForce X II clearomizer
• 1 0.15ohm PnP X V2 coil (pre-installed)
• 1 0.3ohm PnP X coil
• 1 USB-C cable
• 1 bag of spare pieces
• 1 user guide

The Drag 6 kit is made by Voopoo.

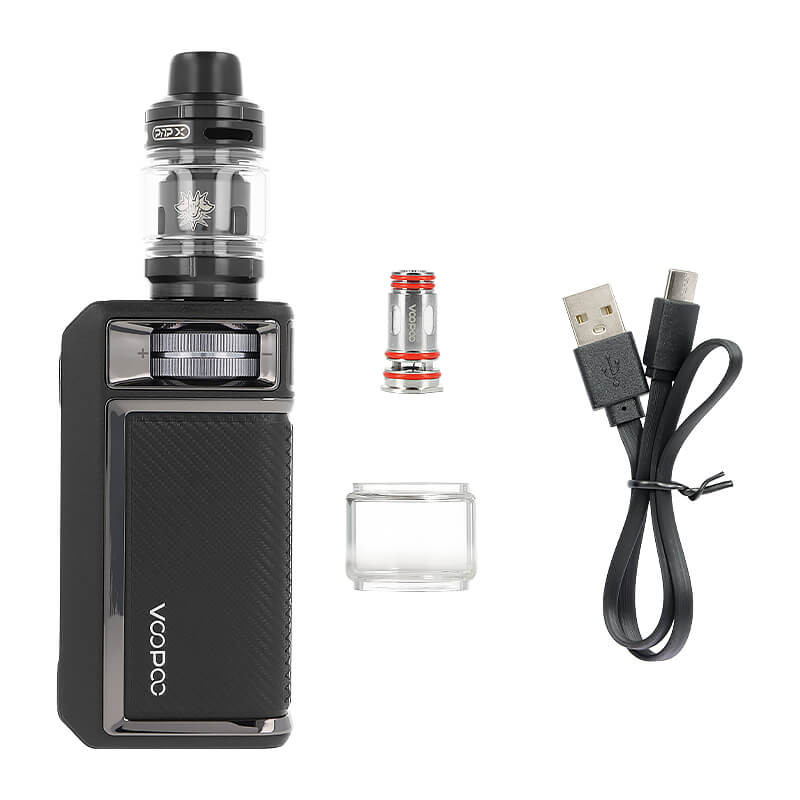

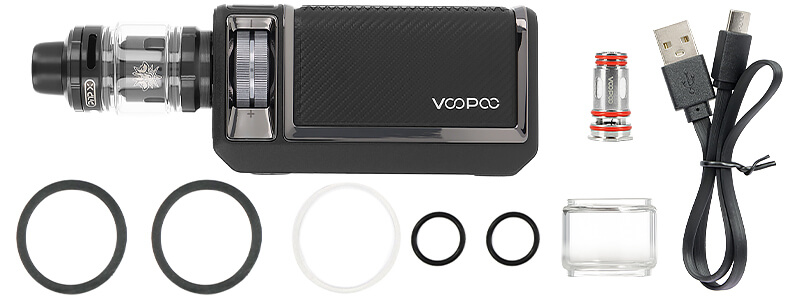

Box contents of Voopoo's Drag 6 kit
