LVE Orion II Pro +RBA Podmod Kit

Would you like to alternate between using pre-assembled coils and making your own?

Here is the Orion II Pro kit from LVE, which comes with two types of cartridges.

This compact podmod is equipped with a 1,900mAh LiPo battery and delivers a maximum power of 50W.

This high-end electronic cigarette is designed for tight draws with indirect inhalation (MTL), or even slightly more airy draws with restrictive direct inhalation (RDL).

The airflow is customizable thanks to the 4 pins included in the box.

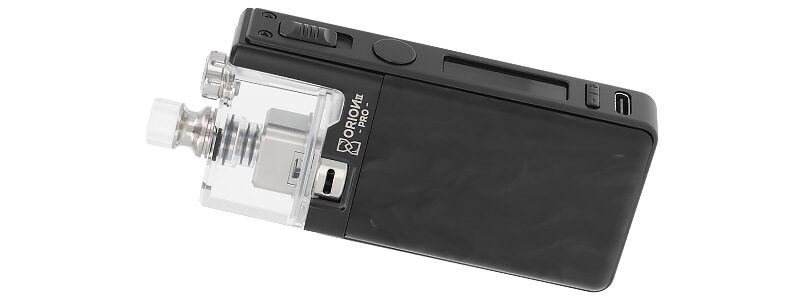

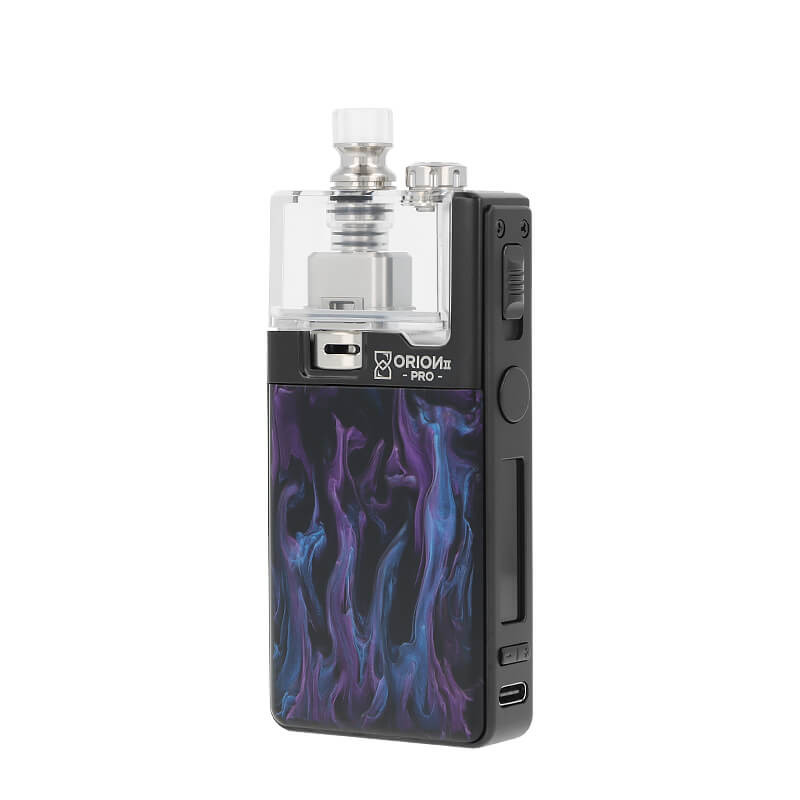

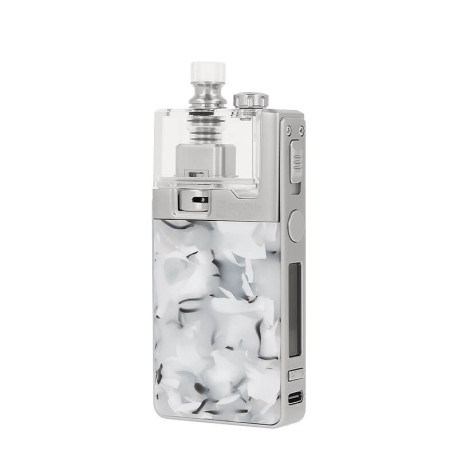

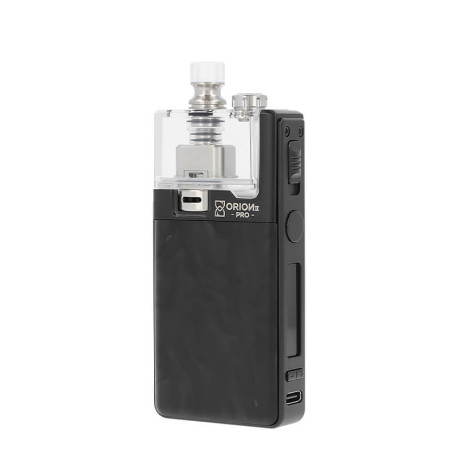

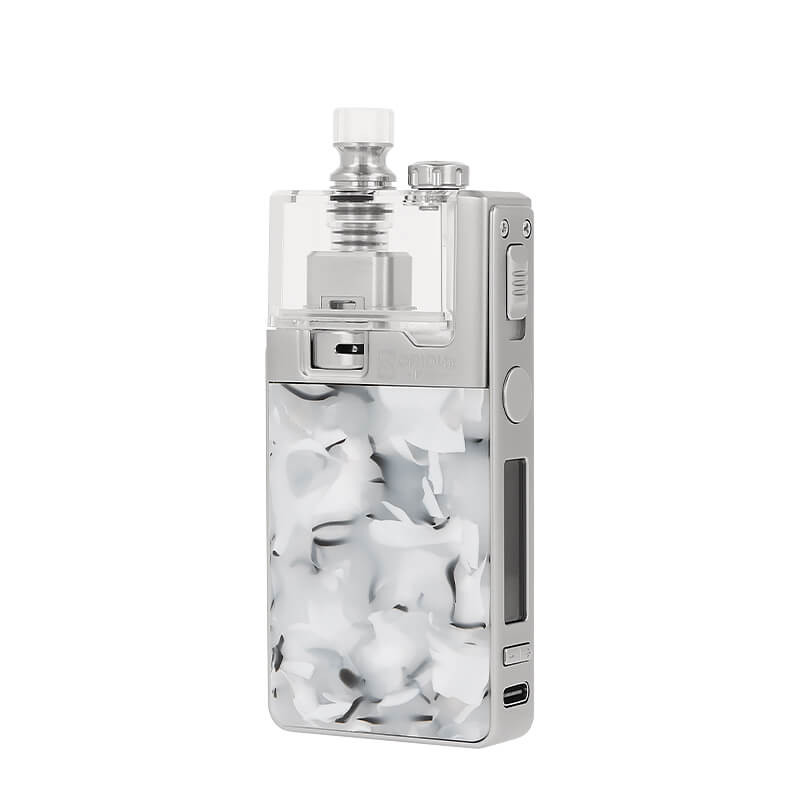

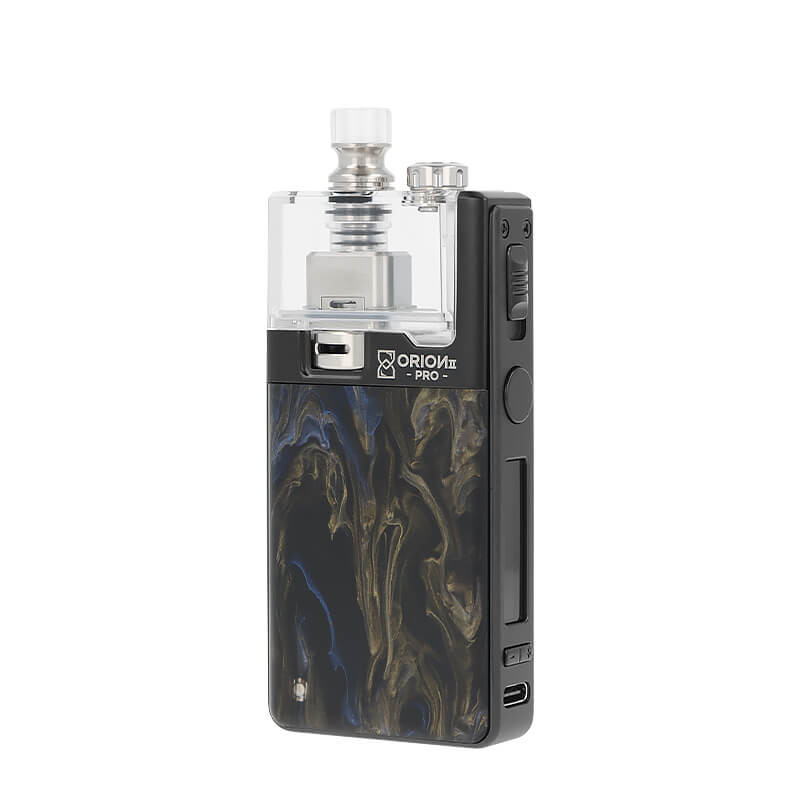

LVE's Orion II Pro +RBA podmod kit

A compact all-in-one kit

The Orion II Pro +RBA kit has a compact rectangular shape measuring 103x43x17.2mm and weighing 150g.

Made from zinc alloy, it also features a PVD (Physical Vapor Deposition) coating. This process adds a protective layer to the materials, giving them hardness, wear, and corrosion resistance.

Both sides of the podmod feature removable magnetic panels, allowing you to customize its design.

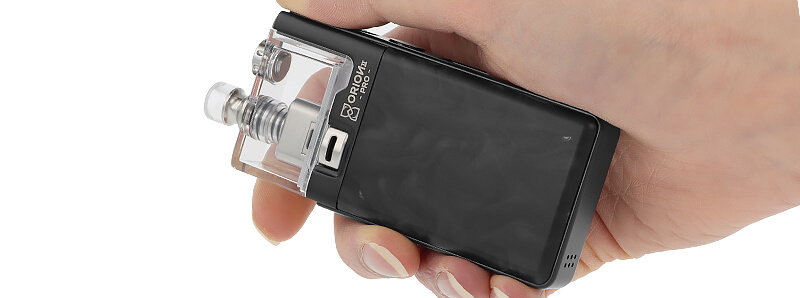

Handling of LVE's Orion II Pro +RBA podmod kit

How does the Orion II Pro kit?

The Orion II Pro kit offers two operating modes, depending on the cartridge inserted.

Press the Fire button four times in succession to select the mode that suits you best:

• MESH mode: the chipset automatically adjusts the power according to the coil value inserted
• RBA mode: manually adjust the power (from 5 to 50W), depending on the type of coil used for your setup (rebuildable)

A 0.99'' TFT color screen gives you access to all the information you need: battery life, power, coil value, and selected mode.

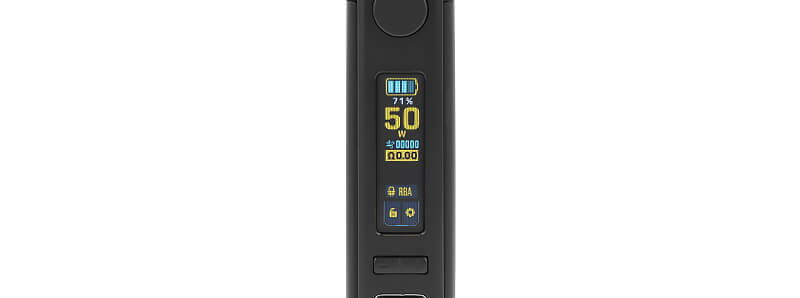

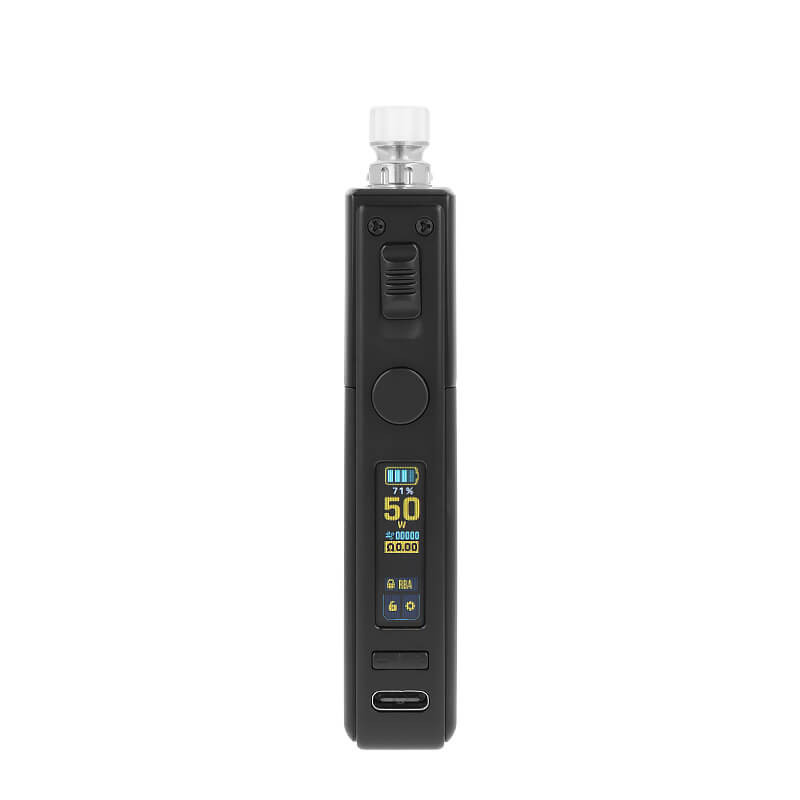

The screen of LVE's Orion II Pro +RBA podmod kit

The 1,900mAh LiPo battery

For its Orion II Pro, LVE has opted for a built-in LiPo battery with a capacity of 1,900mAh.

This type of battery is lighter and more compact than standard models, while delivering a large amount of energy quickly.

It recharges quickly via its USB-C port, using the cable included in the kit's box.

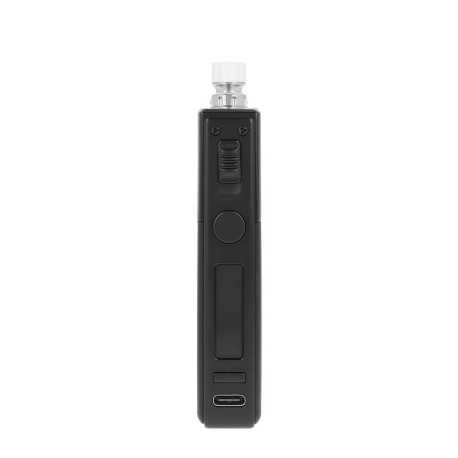

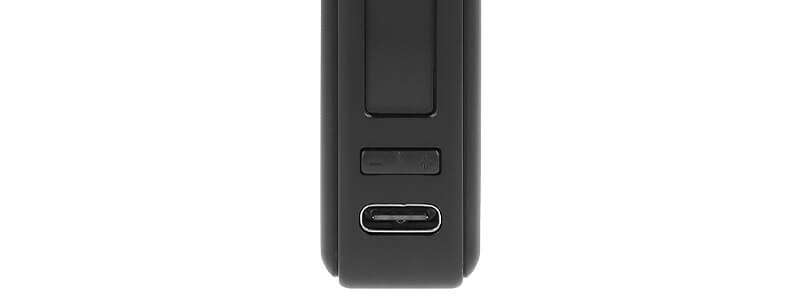

The USB-C port of LVE's Orion II Pro +RBA podmod kit

A versatile kit including two types of cartridges

What really sets the Orion II Pro kit apart from its peers is its versatility in terms of use.

Equipped as standard with an RBA cartridge with a single coil mounting deck, this podmod also comes with a tank designed to hold Orion II pre-built coils.

To remove the cartridge from its base, simply lower the latch located just above the fire button.

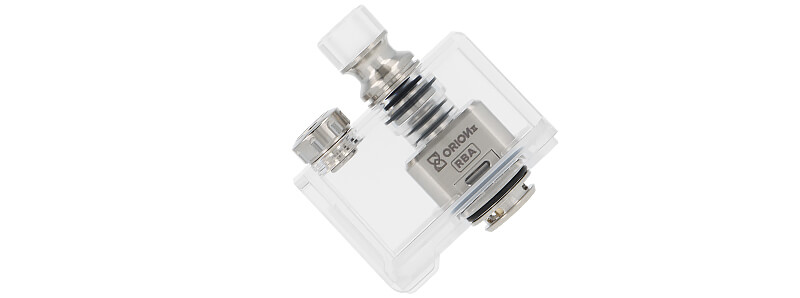

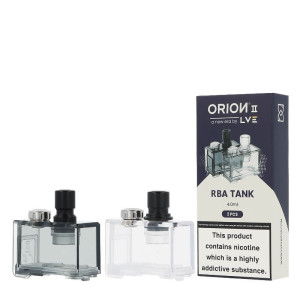

LVE's Orion II RBA cartridge

The Orion II RBA cartridge

This tank is specially designed to accommodate the included single coil mounting plate.

You can use it with an opposite-leg coil, designed for a rather tight draw with indirect inhalation (MTL), or even restrictive direct inhalation (RDL) for a slightly more airy vape.

LVE includes an adapter in the box, allowing you to mount your coil directly onto the podmod if necessary easily.

This cartridge has a 4ml e-liquid capacity and is easily filled from the top.

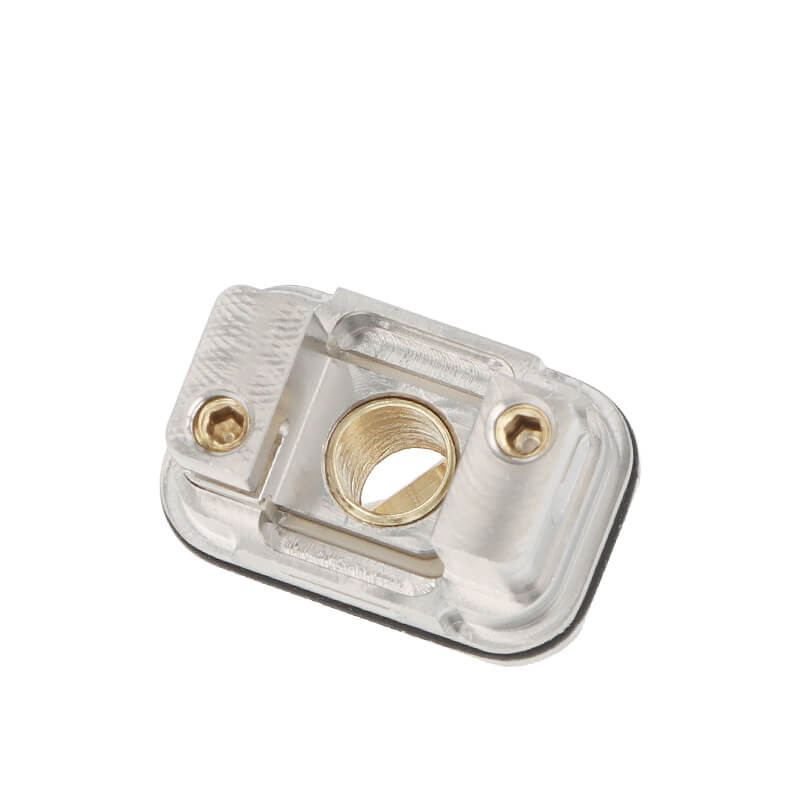

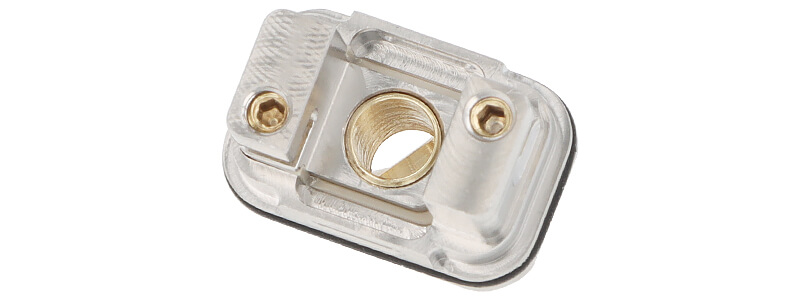

LVE's Orion II RBA deck

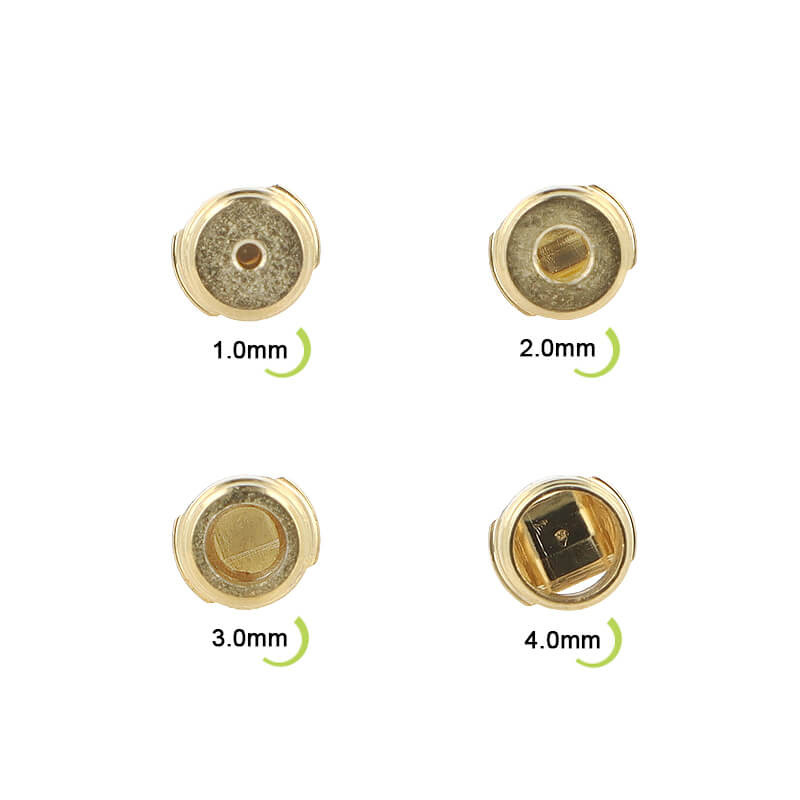

This RBA cartridge comes with 4 airflow pins, allowing you to precisely customize the airflow.

These inserts screw directly under the RBA, without having to remove the deck.

You can choose between different airflow sizes: 1.0mm, 2.0mm, 3.0mm, and 4.0mm.

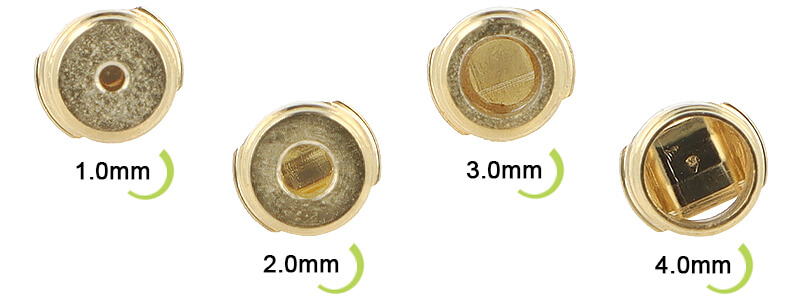

The airflow inserts of LVE's Orion II Pro +RBA podmod kit

The Orion II Ver.2 cartridge

This cartridge is designed exclusively for use with LVE Orion II coils.

Its 4.5ml tank is also top-fill, so it is filled from the top, just like the RBA version.

LVE includes two Orion II MESH coils in the kit box, to be selected according to the type of vape desired:

• Orion II MESH 0.6ohm coil: for use between 17 and 20 watts, for a tight draw with indirect inhalation (MTL)

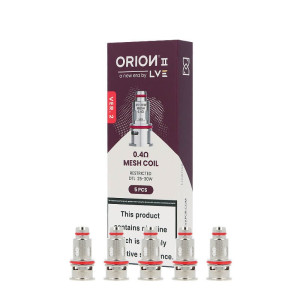

• Orion II MESH 0.4ohm coil: for use between 25 and 30 watts, for a semi-airy vape with restrictive direct inhalation (RDL)

How to fill your tank?

Whether you choose the Orion II Ver.2 cartridge or the Orion II RBA cartridge, you will benefit from the top-fill system in both cases.

This means that the tank can be filled quickly and easily from the top, without having to remove it from its base.

Follow the steps below to refill the cartridge with e-liquid:

1. Unscrew the cap located on the top of the cartridge
2. Insert the tip of your bottle into the large filling hole
3. Gently pour in your e-liquid
4. Screw the cap back on

Is your coil brand new? Wait a few minutes before vaping to allow it to properly absorb the e-liquid.

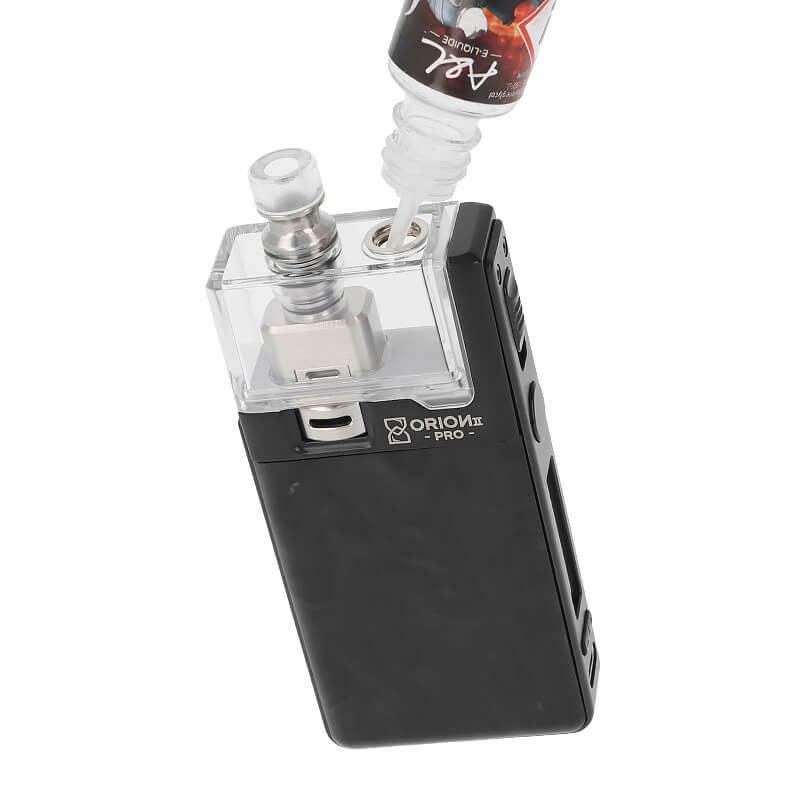

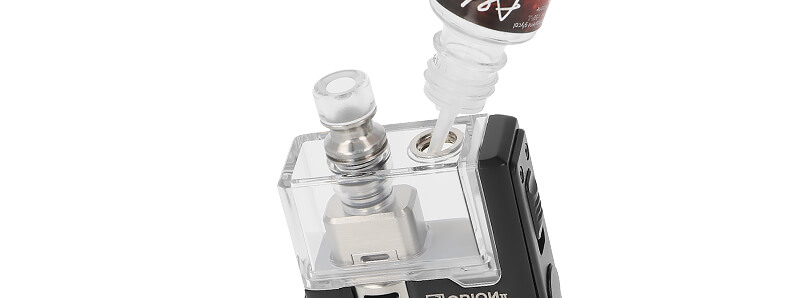

Filling the LVE's Orion II Pro kit

Box contents

• 1 Orion II Pro RBA+ podmod kit
• 1 Orion II RBA cartridge
• 1 Orion II Ver.2 cartridge
• 1 Orion II RBA deck
• 1 RBA adaptor
• 1 0.6ohm Orion II coil
• 1 0.4ohm Orion II coil
• 1 MTL 510 drip tip
• 1 RDL 510 drip tip
• 1 USB-C cable
• 1 user guide

The Orion II Pro RBA+ podmod kit is made by LVE.

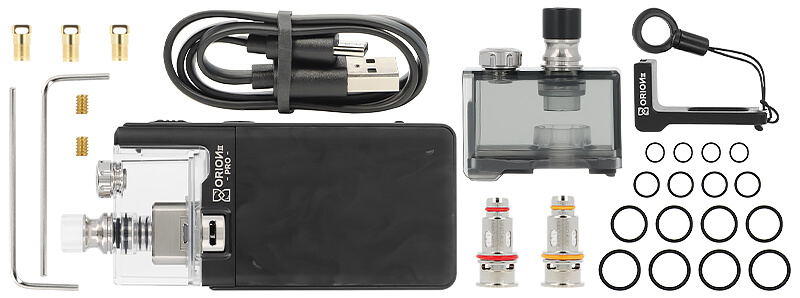

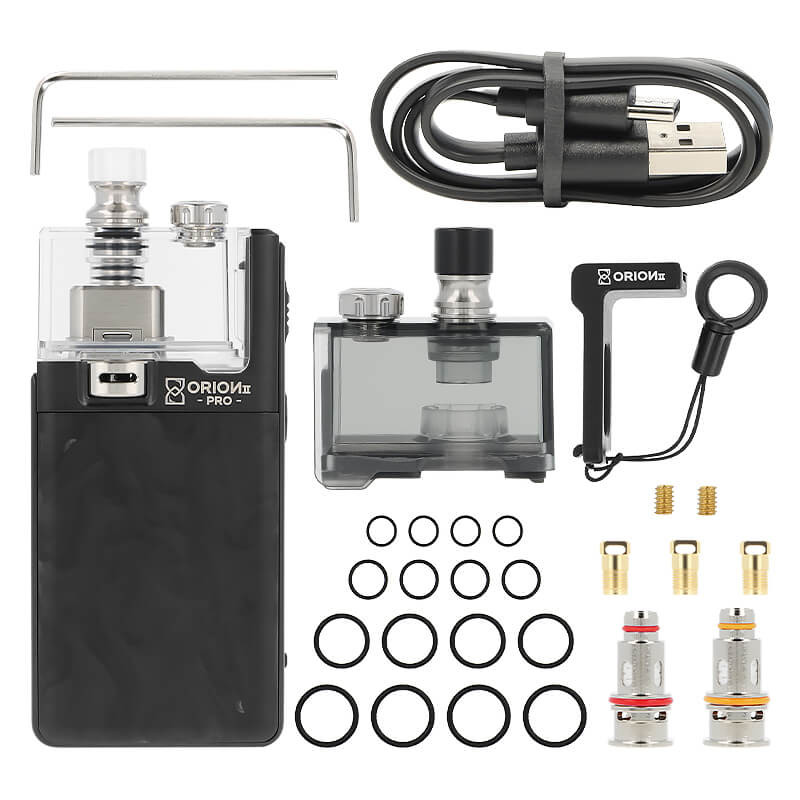

Box contents of LVE's Orion II Pro +RBA podmod kit
