Vaporesso Armour Ultra Kit

Vaporesso offers its Armour kit in an Ultra version, being a more compact model compared to its predecessor.

Composed of the Armour Ultra mod and the iTank T clearomizer, this kit is meant for airy draw enthusiasts in direct inhaling (DL).

It has a 5,500mAh built-in battery and delivers a maximum power of 100 watts.

The iTank T is compatible with the GTi Dual Mesh coils and has a 6ml bulb tank.

The Armour Ultra mod stands out with its IP68, IP69K, and MIL-STD-810H certifications.

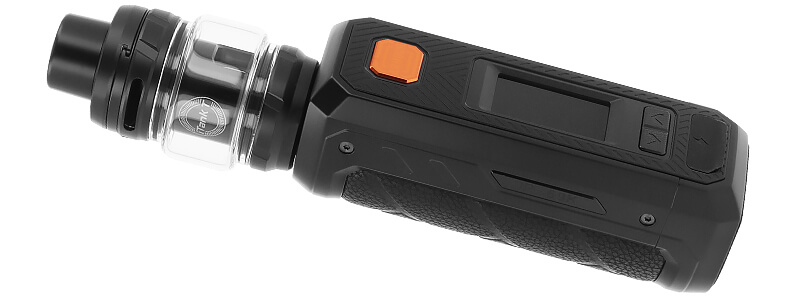

Vaporesso's Armour Ultra kit

A reduced format but still as performing

While keeping the assets of the original Armour kit, Vaporesso signs here a more compact version of its e-cigarette: the Armour Ultra.

This kit is lighter than its predecessor, with a weight of only 256g for dimensions of 144.5x31x37.5mm.

The main side of the mod includes, from top to bottom:

• 1 switch button
• 1 0.96" TFT screen
• 2 setting buttons
• 1 USB-C port

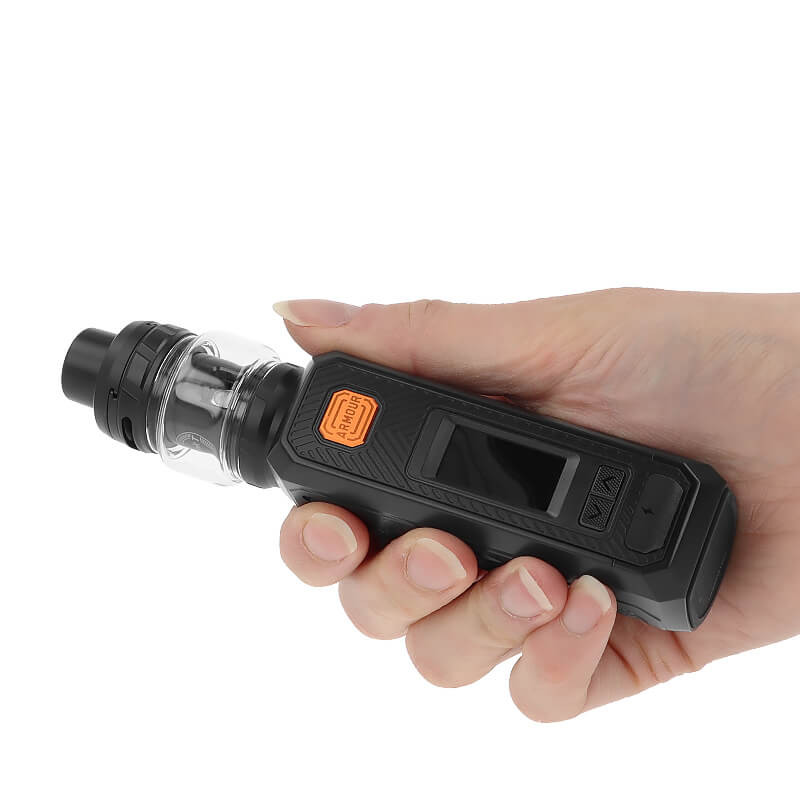

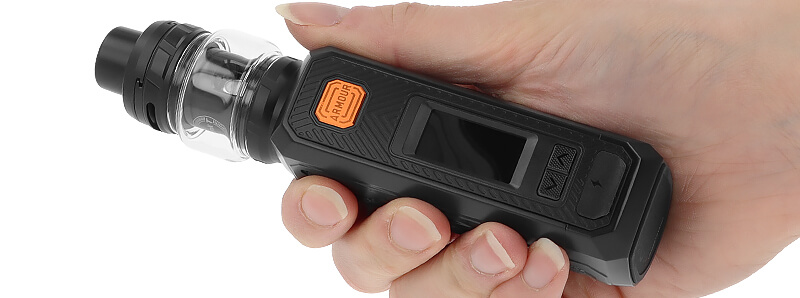

Handling of Vaporesso's Armour Ultra kit

Several functioning modes

Before the first use, Vaporesso recommends to change entirely the entire battery of your kit.

Then, push 5 times on the main button of the mod to turn it on.

Use the setting buttons and the color TFT screen to select the mode that suits you among:

• BOOST mode: for a balance between flavors and vapor, setting the maximum power handled by the coil installed in your iTank T
• PULSE mode: for constant puffs, select a medium power
• ECO mode: for normal power, preserving the battery capacity
• TC-Ni/SS/Ti mode: temperature setting, to only use with a rebuildable atomizer

The Armour Ultra mod has an AXON chipset, delivering a maximum power of 100W.

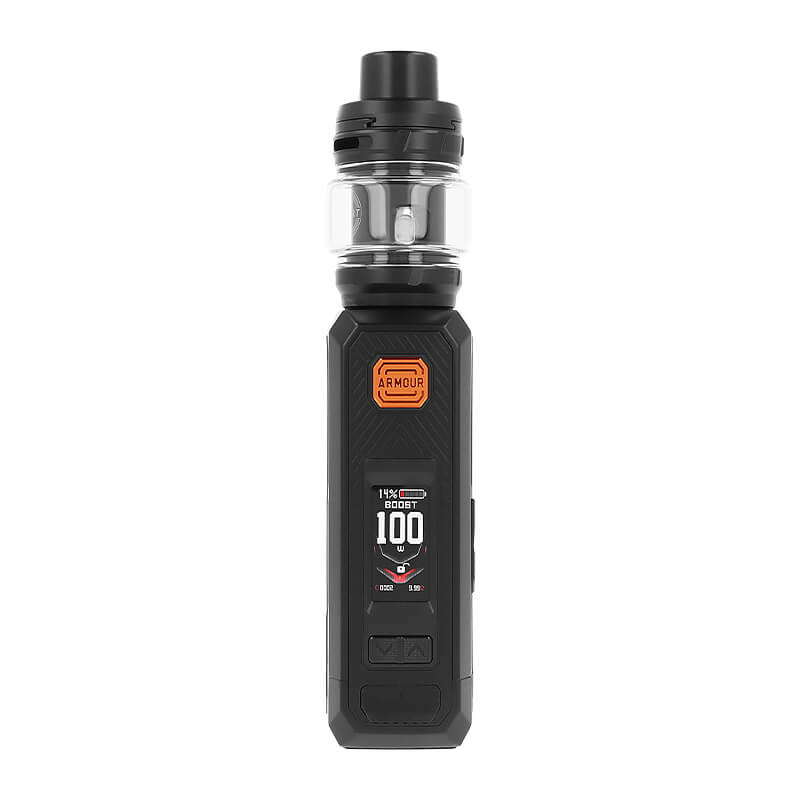

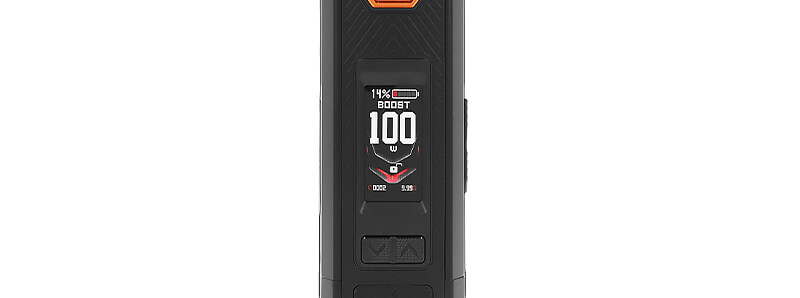

The screen of Vaporesso's Armour Ultra kit

Do you take your Armour Ultra everywhere with you? Remember to lock it to avoid any involuntary pushes.

For this, use the sliding button located on the side of the mod.

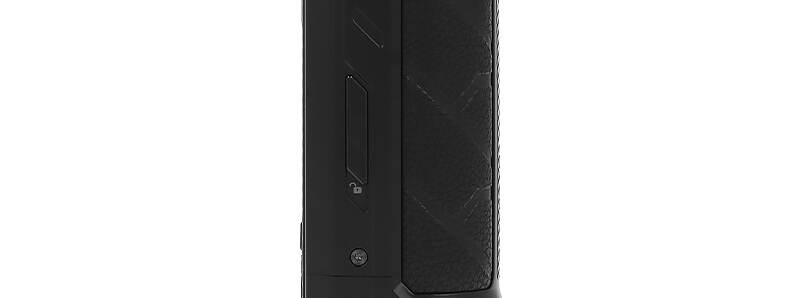

The locking switch of Vaporesso's Armour Ultra kit

A 5,500mAh capacity

Despite a compact format, the Armour Ultra kit has great autonomy.

Indeed, this electronic cigarette has a built-in battery of 5,500mAh.

The latter is rechargeable by USB-C, using the cable included in the box.

The USB-C port is covered with a silicone strip, protecting it from dust.

It is located on the main side of the mod, just below the settings.

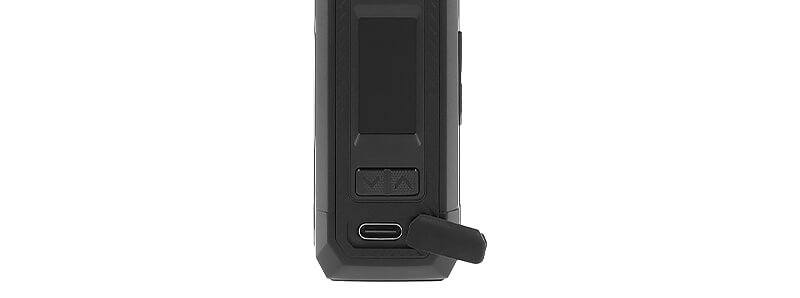

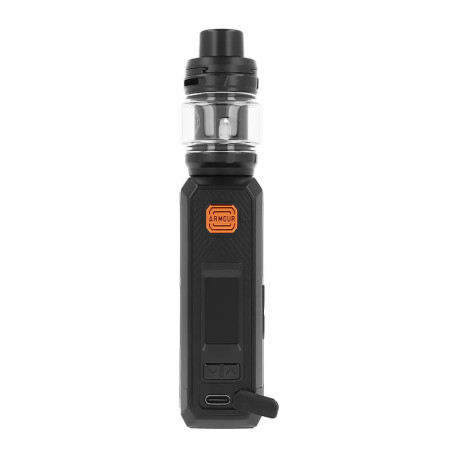

The USB-C port of Vaporesso's Armour Ultra kit

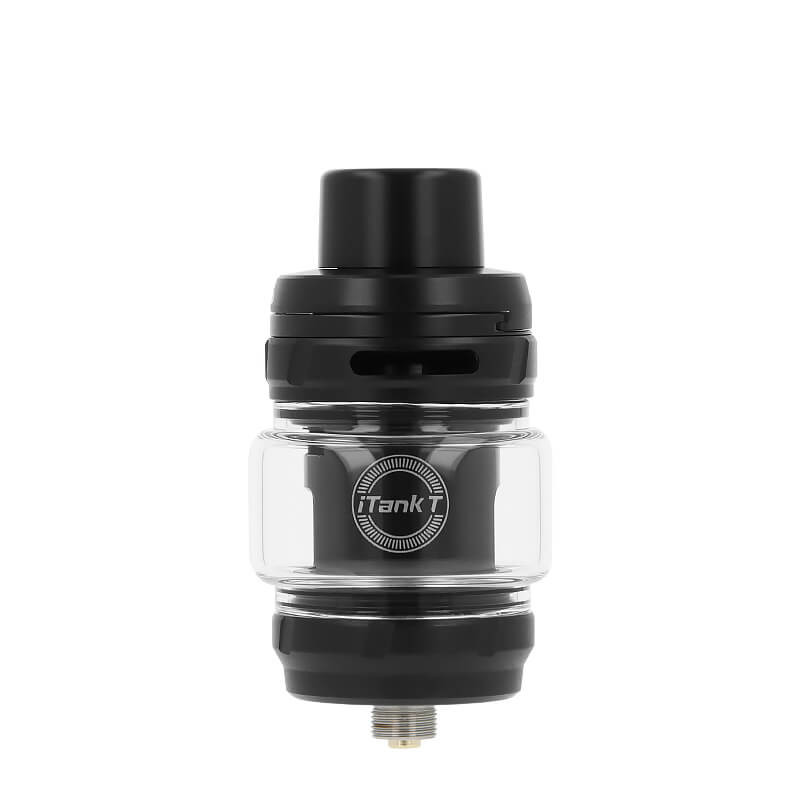

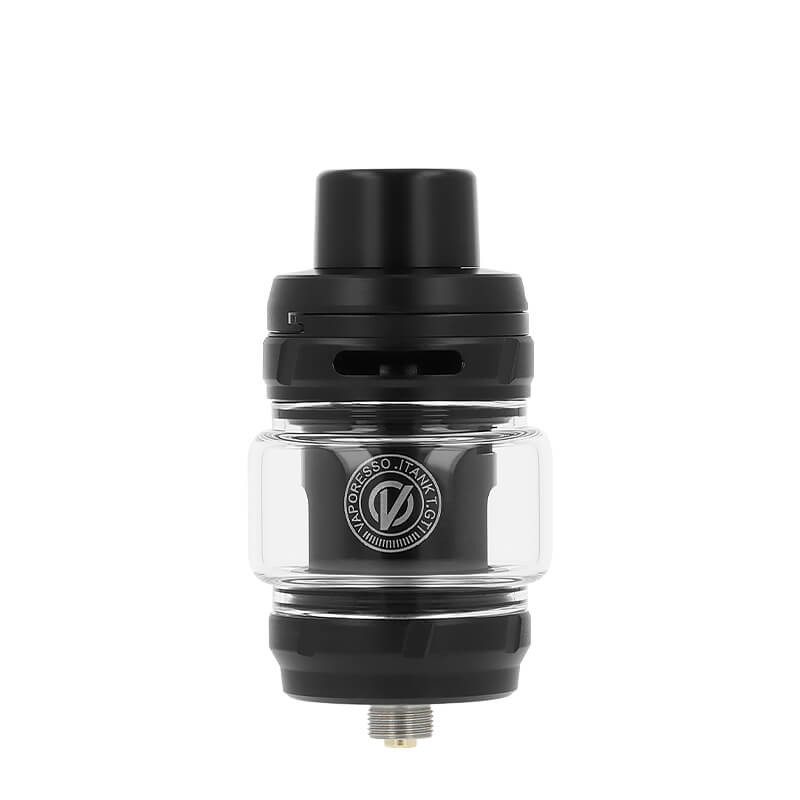

The iTank T clearomizer

To accompany the Armour Ultra mod, Vaporesso bets on the iTank T, a sub-ohm clearomizer for your DL (direct inhaling) vape.

It has a 6ml bulb Pyrex, and is specially made to receive the GTi coils of the manufacturer.

Please note that a 3ml straight Pyrex is included in the box, with a silicone vape band to protect the tank.

Top fill and top airflow, it matches performance and handiness.

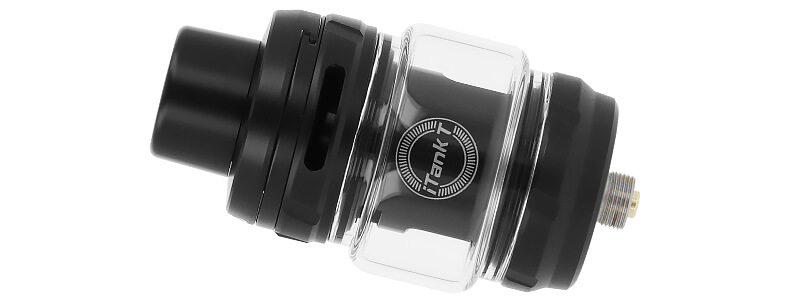

The iTank T clearomizer of Vaporesso's Armour Ultra kit

The GTi dual mesh coils

Thought for your airy draw in direct inhaling (DL), the GTi dual mesh coils enable a more homogeneous heating while preserving their lifespan.

Select the value that suits you among the two included according to your needs:

• 0.2ohm GTi Dual Mesh coil (pre-installed): for an airy vape, to use between 60 and 75W
• 0.4ohm GTi Dual Mesh coil: for a bit more restrictive draw, to use between 50 and 60W

After two to three weeks of use, your coil will start to show some wear signs (loss of flavors, light burnt taste).

It will be time to replace it with a new one.

For this:

1. Disconnect the clearomizer of the Armour Ultra mod
2. Unscrew the bottom part of the iTank T
3. Take off the used coil by slightly pulling on it
4. Soak a new coil with some e-liquid drops
5. Insert it in its compartment in place of the old one
6. Screw back the bottom part of the clearomizer
7. Replace the iTank T on the mod
8. Fill the tank with e-liquid
9. Wait for some minutes before vaping so the new coil is correctly primed

An efficient top airflow

Located on the top part of the clearomizer, the airflow system is both performing and leakproof.

This top airflow is adjustable via a rotary ring.

According to the desired draw type, turn this ring to free more or less the two large air intake windows.

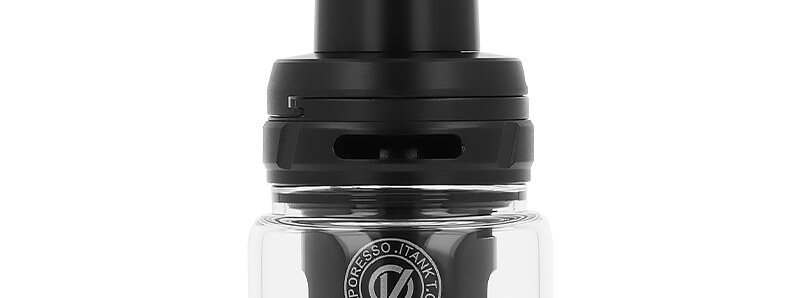

The airflow of Vaporesso's Armour Ultra kit

A top-filling clearomizer

When it's time to fill the 6ml of the iTank T's bulb tank, no need to take the clearomizer off the Armour Ultra mod!

Indeed, it has a handy system with a top filling.

Simply get your bottle with a thin tip, then:

1. Push the top cap of the clearomizer at the red arrow
2. Insert the bottle tip into the hole covered with a silicone strip
3. Softly pour your e-liquid up to three-quarters of the tank
4. Slide the top cap in the opposite way to close it

Is your tank new? Wait for some minutes before vaping so it is primed with e-liquid.

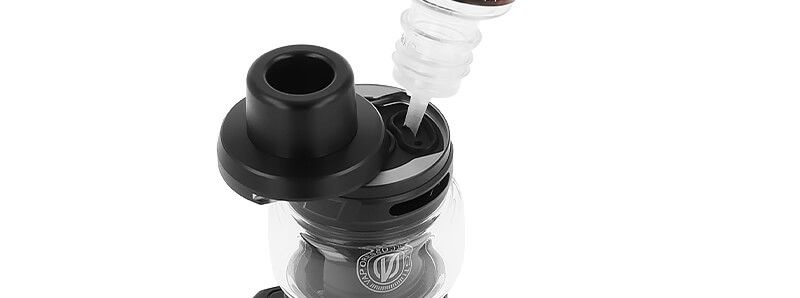

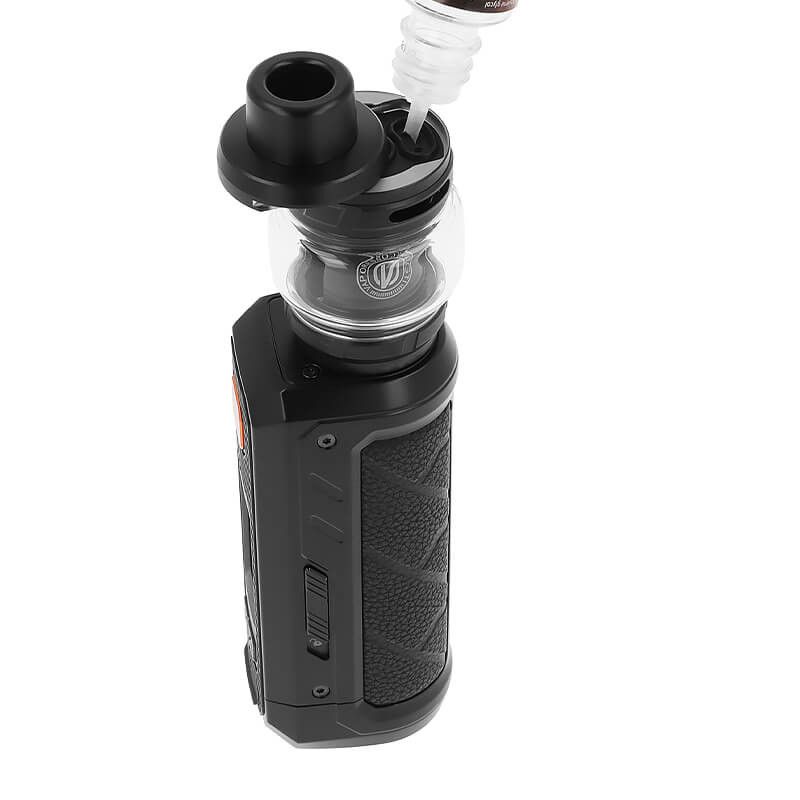

Filling of Vaporesso's Armour Ultra kit

Box contents

• 1 Armour Ultra 100W mod
• 1 6ml iTank T clearomizer
• 1 0.25ohm GTi Dual Mesh coil (pre-installed)
• 1 0.4ohm GTi Dual Mesh coil
• 1 USB-C cable
• 1 3ml straight Pyrex
• 1 set of spare pieces
• 1 user guide

The Armour Ultra kit is made by Vaporesso.

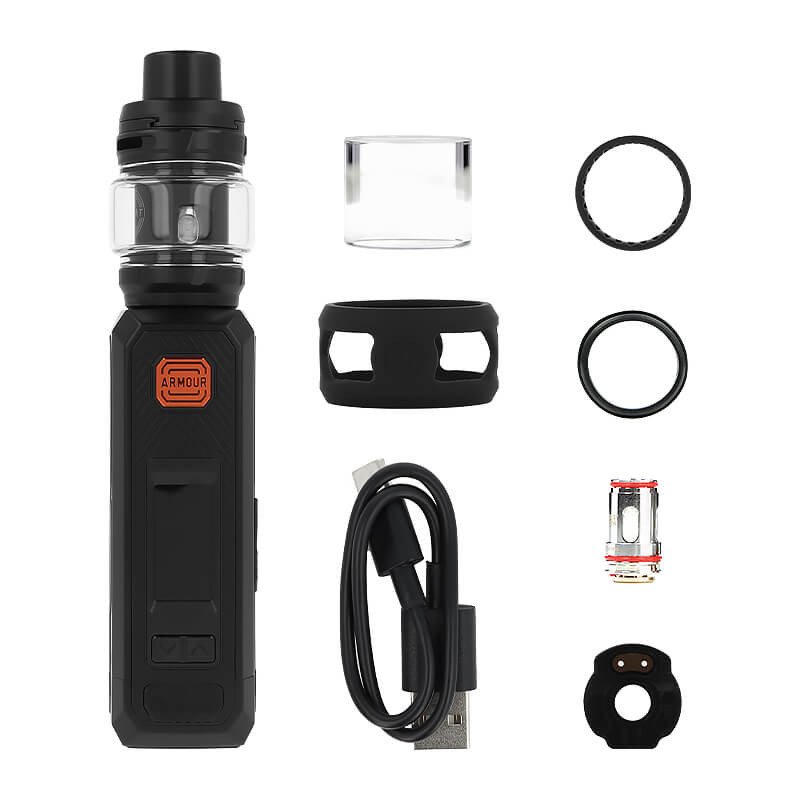

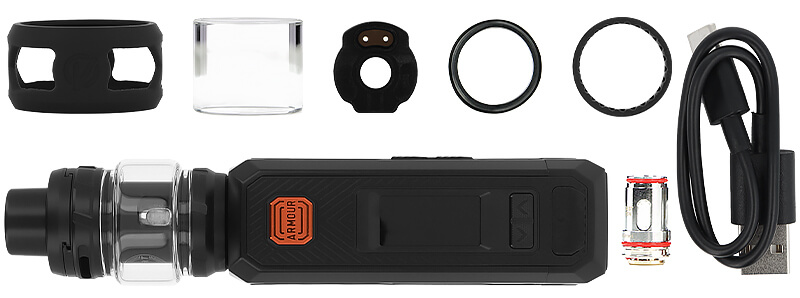

Box contents of Vaporesso's Armour Ultra kit
