Eleaf iStick X80 Kit

The iStick X80 kit is composed of an iStick X80 electronic mod and a Melo X clearomizer, both connected via a standard 510 pin.

The mod has a built-in battery with a 3,200mAh capacity and is easily recharged via its USB-C port.

It also offers a switch button enabling customization of the functioning modes and a locking switch.

The clearomizer is equipped with a 5ml bulb tank, specially made to receive the EC-D, EC Mesh, EC-A, and EC2 coils by Eleaf.

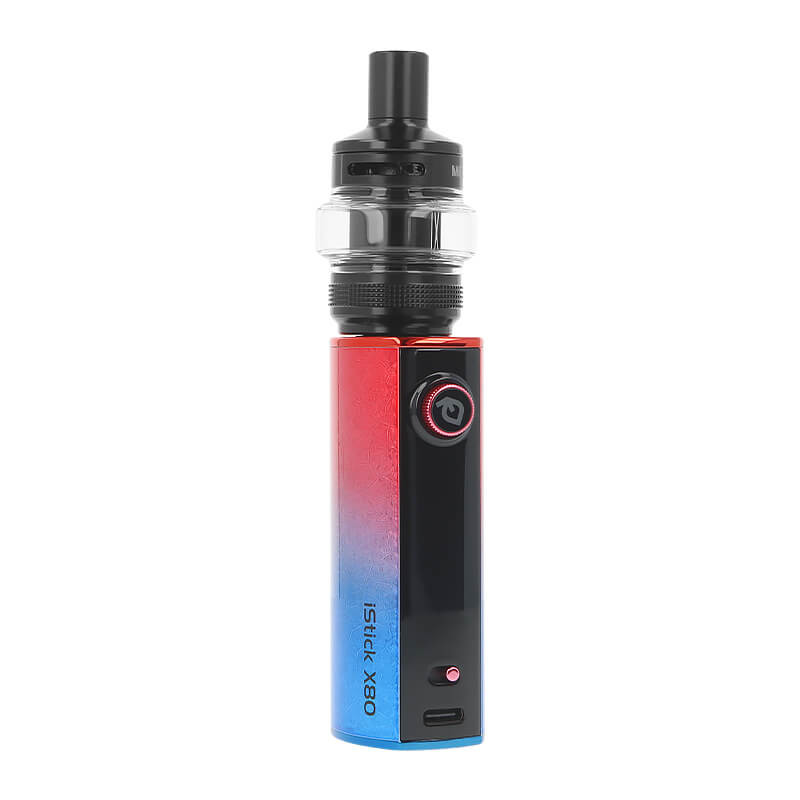

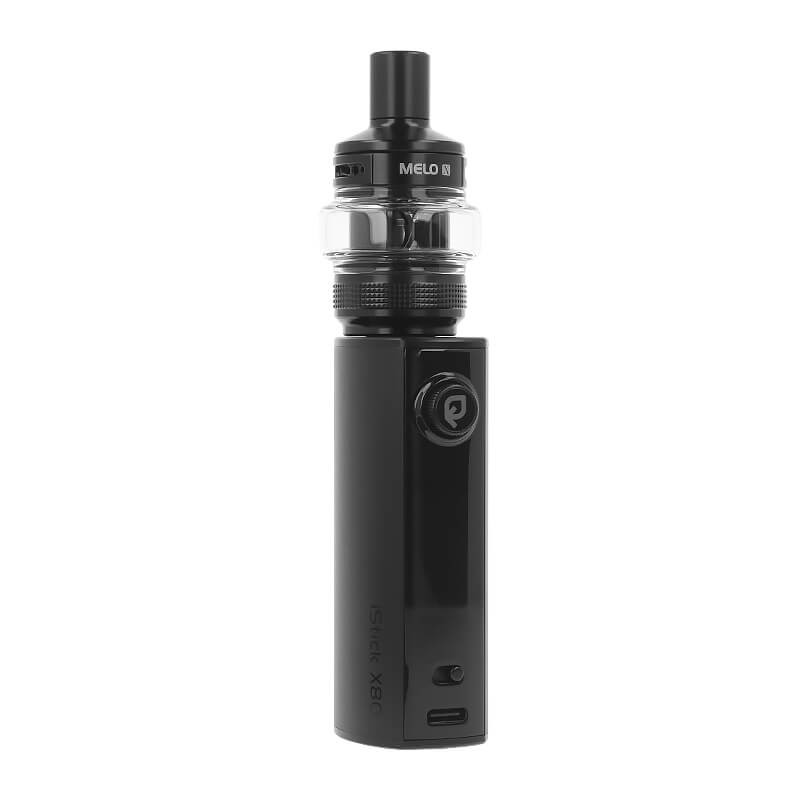

Eleaf's iStick X80 kit

The design of the iStick X80 kit

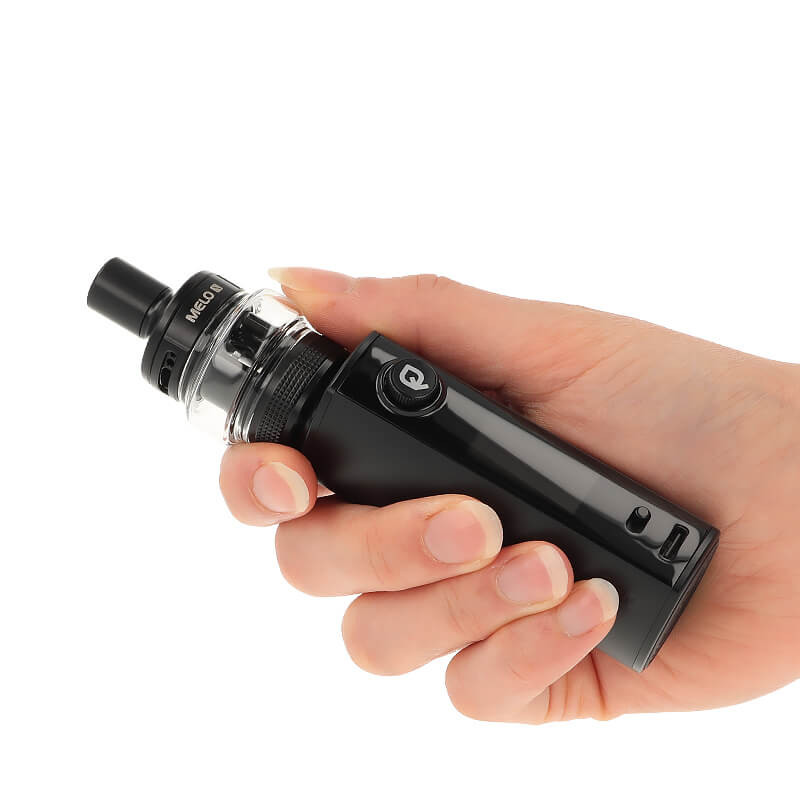

With its compact mod made of aluminum alloy, the iStick X80 kit presents an ergonomic and easy-to-handle design, with dimensions of 134.1x38.7x28.1mm.

Its main side has:

• 1 Switch button
• 1 1.05" TFT color screen
• 1 locking switch
• 1 USB-C port (5V/2A)

Handling of Eleaf's iStick X80 kit

A simple and intuitive functioning

Eleaf equips the iStick X80 kit with the performing AVATAR 2.0 chipset, which can deliver a maximum power of 80 watts.

According to your needs, you'll have the choice between several functioning modes:

• POWER mode: manually adjust the power according to the value of the coil installed in the Melo X clearomizer, from 5 to 80W
• RTA mode: set the tension from 0.5 to 9V

Select the mode that suits you via the color screen and the wheel of the switch button.

Do you take your kit everywhere? Remember to use the locking switch located below the USB-C port to avoid any involuntary pushes of the mod! Please note that you can also lock the wheel only.

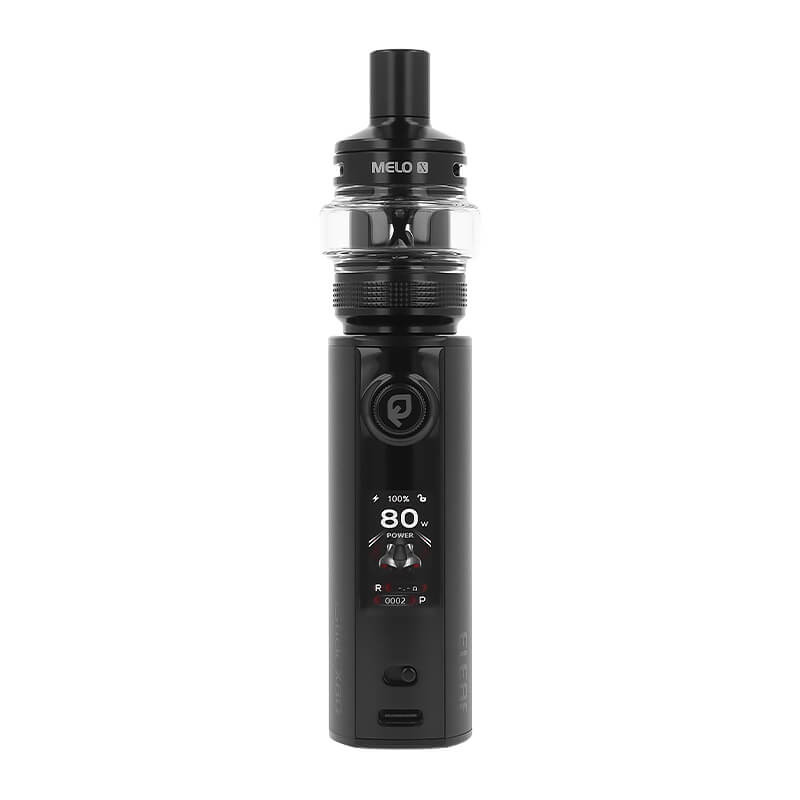

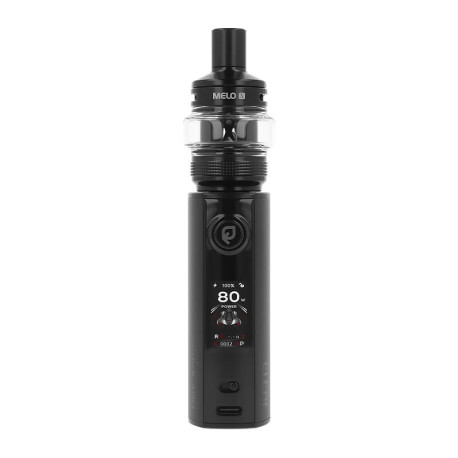

The screen of Eleaf's iStick X80 kit

A 3,200mAh built-in battery

For the autonomy, Eleaf equips the iStick X80 kit with a rechargeable 3,200mAh built-in battery.

The screen gives you access to its level of charge in real time, and the USB-C cable included enables you to quickly recharge it.

Discover the USB-C port on the main side of the mod, just below the locking switch.

The USB-C port of Eleaf's iStick X80 kit

The Melo X clearomizer

With a maximum power of 80W, this kit is matched with a clearomizer for direct inhaling (DL), for very airy vape sessions!

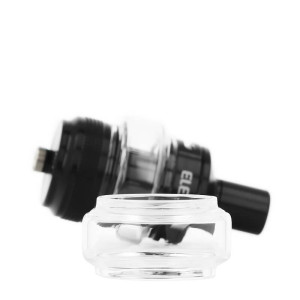

Eleaf chooses the Melo X, a clearomizer has a 5ml bulb Pyrex and a 510 drip tip.

Its large compatibility with the EC coil collections by Eleaf gives it a great versatility of use, enabling it to be used in indirect inhaling (MTL) for a tighter draw.

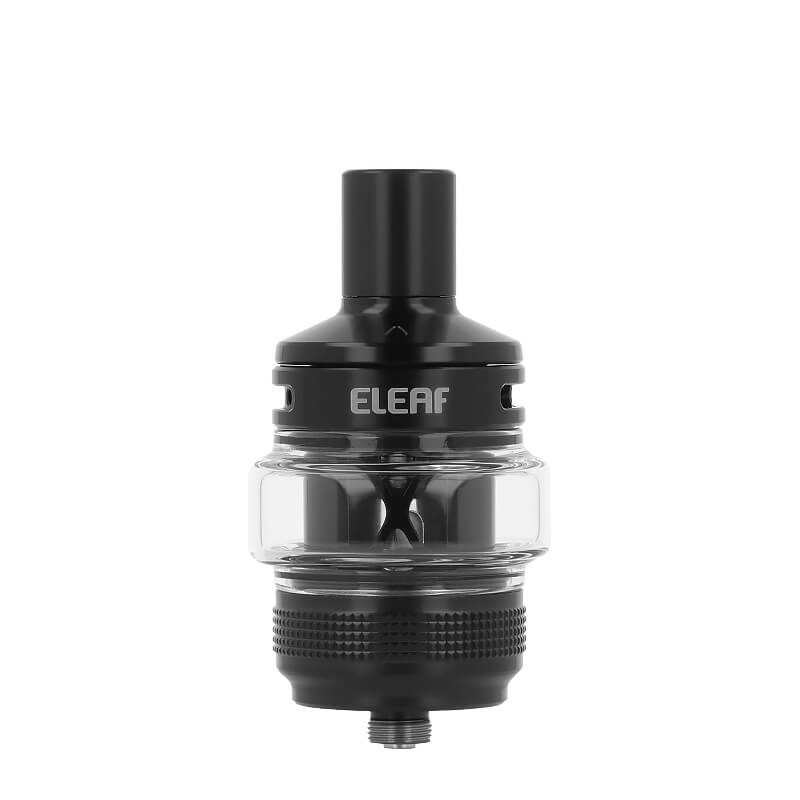

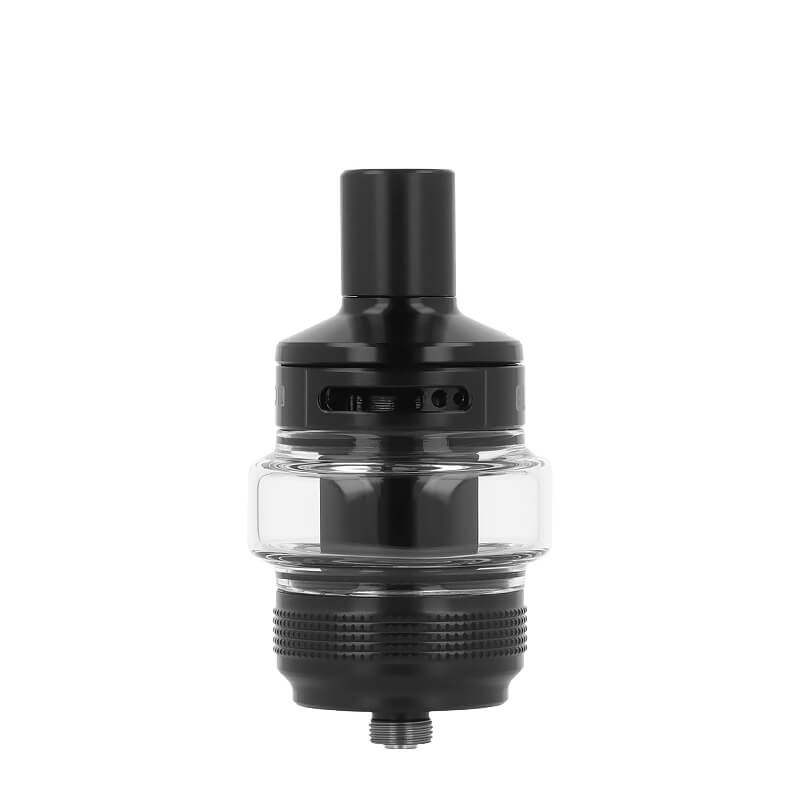

The Melo X clearomizer of Eleaf's iStick X80 kit

Two EC-D coils included

Eleaf includes two EC-D coils with your kit, meant for a cloudier vape:

• 1 0.5ohm Mesh EC-D coil: to use between 15 and 25W
• 1 0.3ohm Mesh EC-D coil (pre-installed): to use between 30 and 45W

Please note that the Melo X clearomizer is also compatible with all the EC coil collection by Eleaf!

After two to three weeks of use, the coil will start to show some signs of wear (loss of flavors, light burnt taste).

It will be time to replace it with a new one.

For this:

1. Disconnect the Melo X from the iStick X80 mod
2. Unscrew the bottom part of the clearomizer
3. Slightly pull on the coil used to take it off
4. Soak a new coil with some e-liquid drops
5. Insert it in its compartment in place of the old one
6. Screw back the bottom part of the clearomizer

Wait for a few minutes before vaping so the new coil is correctly primed with e-liquid.

The airflow of Melo X

Easily and quickly adjust the airflow under the coil thanks to the ring located on the top part of the clearomizer.

Pivot the airflow to free more or fewer holes: the more air you let in, the airier the vape!

The airflow of the Melo X clearomizer on Eleaf's iStick X80 kit

A 5ml tank to fill from the top

The Melo X clearomizer presents a certain advantage, to be easily filled from the top!

No need to take the mod off when you fill it with e-liquid.

For this, you only have to:

1. Push the top cap
2. Insert the thin tip of your bottle into the filling hole
3. Pour your e-liquid up to three-quarters
4. Push the top cap back

Wait for 5 to 10 minutes before vaping so you use a new coil.

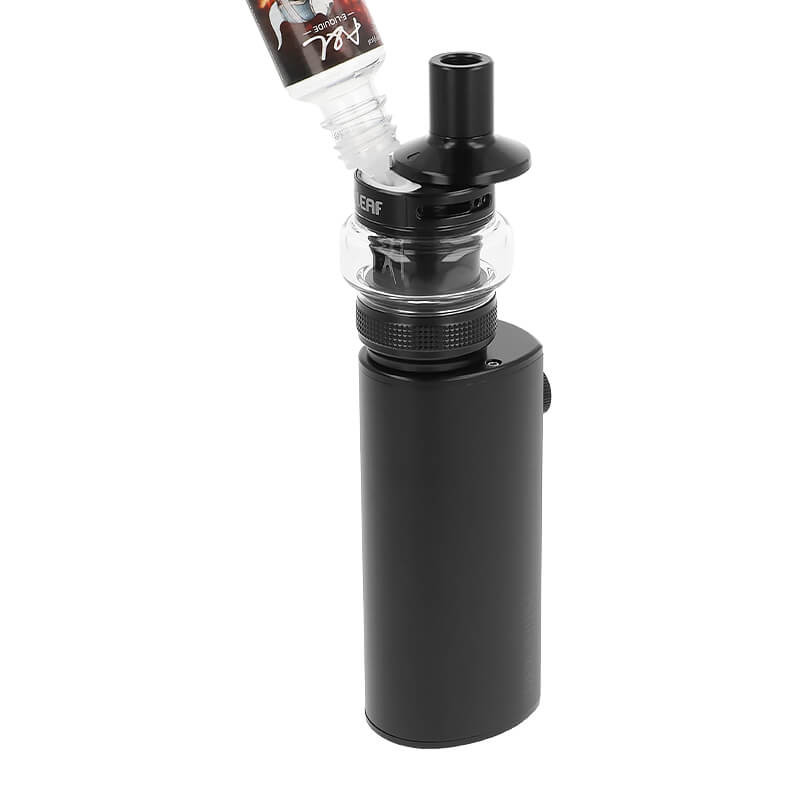

The filling of the Melo X clearomizer on Eleaf's iStick X80 kit

Box contents

• 1 3,200mAh iStick X80 mod
• 1 5ml Melo X clearomizer
• 1 0.5ohm Mesh EC-D coil
• 1 0.3ohm Mesh EC-D coil (pre-installed)
• 1 USB-C cable
• 1 user guide

The iStick X80 kit is made by Eleaf.

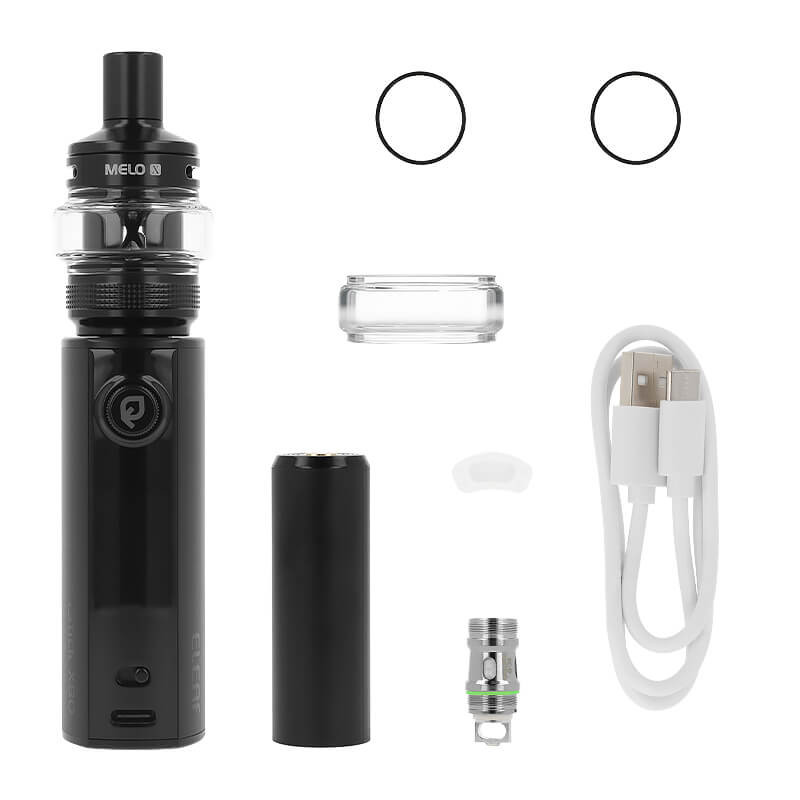

Box contents of Eleaf's iStick X80 kit
