Geekvape Z Nano 3 Clearomizer

Geekvape expands the collection of its Zeus clearomizers by presenting the third version of the Z Nano.

This model keeps the spirit of previous versions and offers a bulb tank with a great 5ml capacity.

With a base diameter of 22mm and 28mm at the tank level, this clearomizer is compatible with most mods with a 510 connection.

Its filling is made through the top: no need to take the clearomizer out to fill it. You only have to push the sliding top cap to access the filling hole.

You'll have an adjustable top airflow and a 510 drip tip.

Geekvape's Z Nano 3 clearomizer with SXmini's SL Class V2 mod

A look similar to the Z Nano series

The Z Nano 3 has the same style as Geekvape's Z Nano series. Its slightly larger format provides a more important tank for a greater capacity.

With dimensions of 22mm in diameter and 57.2mm in height, it also adapts to all mods.

Its conception in stainless steel and in Pyrex glass makes it sturdy.

As for the 510 drip tip, it is detachable and can easily be changed if needed.

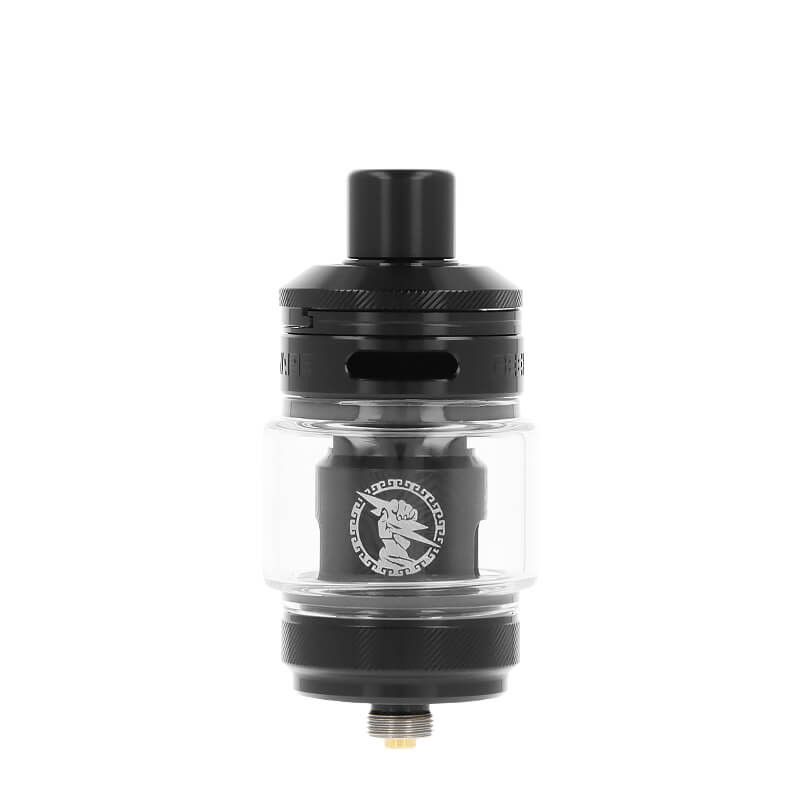

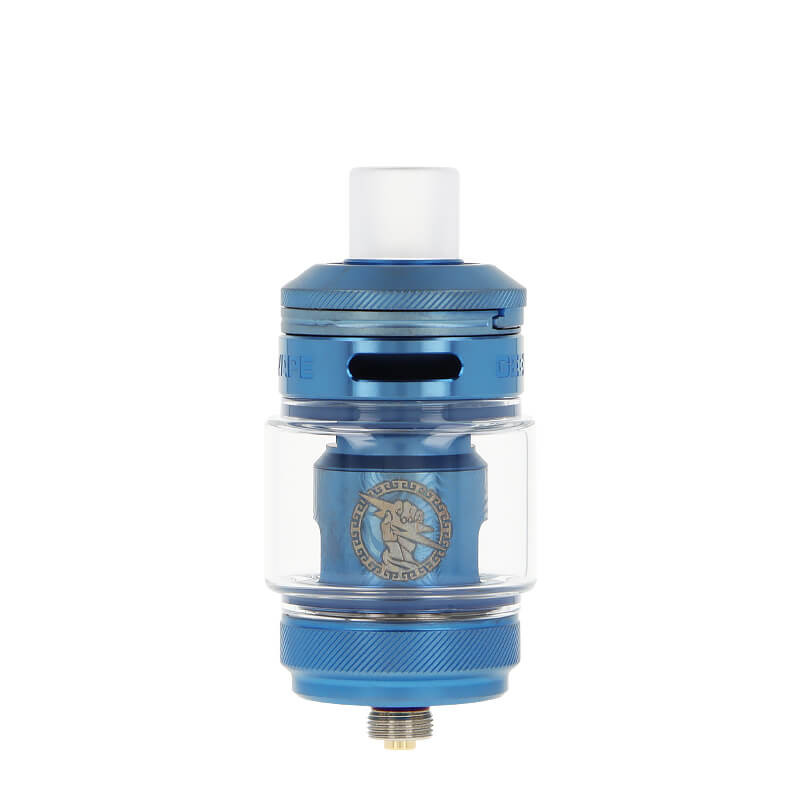

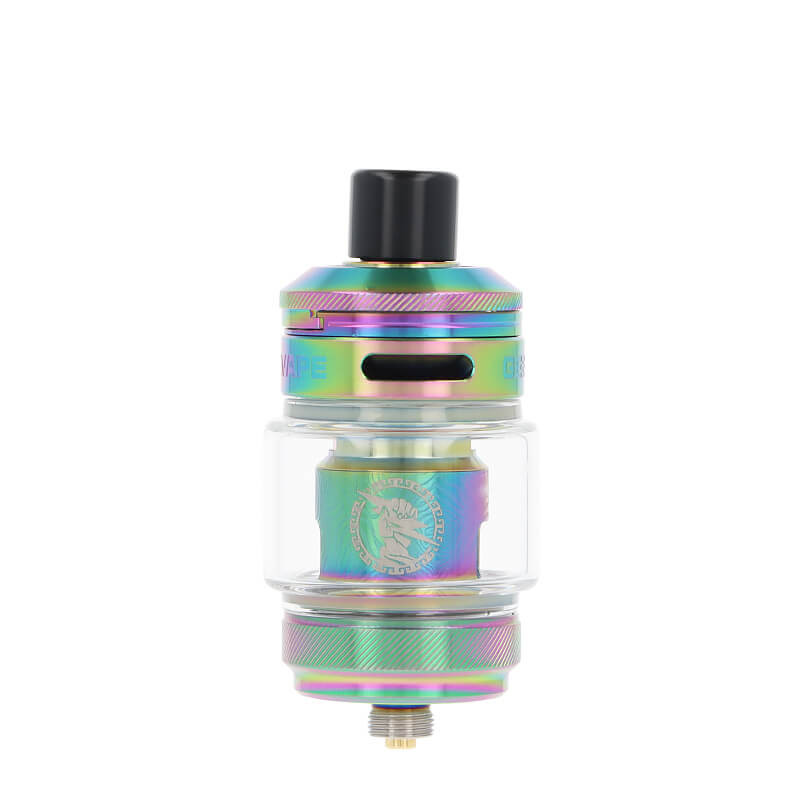

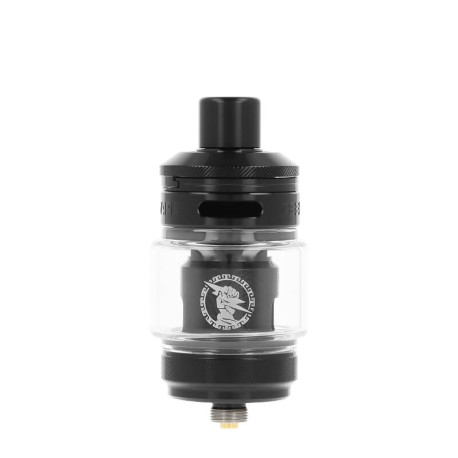

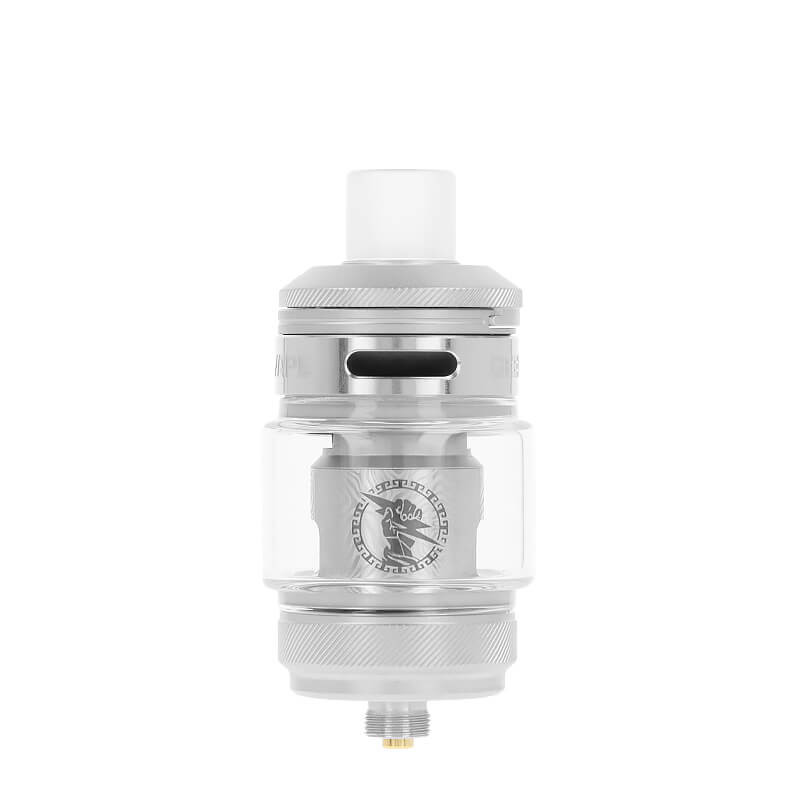

Geekvape's Z Nano 3 clearomizer

The B Series coils

Like previous models, the Z Nano 3 is compatible with the B Series coils by Geekvape.

With the clearomizer, the manufacturer provides the two following coils:

• 1 B Series Boost coil of 0.2ohm (pre-installed): to use between 50 and 80W for a very airy draw (DL)
• 1 B Series Boost coil of 0.4ohm: suited to a semi-airy draw in restrictive direct inhaling (RDL) between 25 and 35W

If you wish to change your actual coil with the 0.4ohm coil or simply install it in place of the 0.2ohm coil, here is the process:

1. Unscrew the bottom part of your clearomizer
2. Slightly pull on the coil thanks to the key included in the box
3. Soak the cotton of the coil with e-liquid
4. Insert the new coil in the dedicated compartment
5. Carefully screw the base

Warning: We recommend waiting for at least ten minutes before vaping, so the coil's cotton is correctly primed with e-liquid.

The top airflow of Z Nano 3

Located on the clearomizer's top part, the airflow of Z Nano 3 is equipped with two large air intakes so you can go from an MTL to a DL draw.

To do this, you only have to pivot the airflow ring with one gesture. Reminder: the more the airflow is open, the more airy the draw, and vice versa, the more it is closed, the tighter the draw.

The airflow of Geekvape's Z Nano 3 clearomizer

How to fill the tank of Z Nano 3?

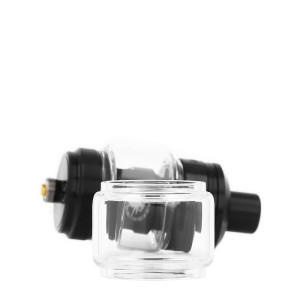

The Z Nano 3 is equipped with a bulb Pyrex tank with a capacity of 5ml. Handy, this top-filling system enables you to fill it with e-liquid without having to take the clearomizer off the mod.

Is your tank empty? Don't worry, here are the steps:

1. Push the top cap to the marker
2. Insert the bottle's thin tip into the hole
3. Slowly fill up to three-quarters
4. Close by sliding the top cap

If you use a new coil, wait 5 to 10 minutes before vaping so the cotton is correctly primed.

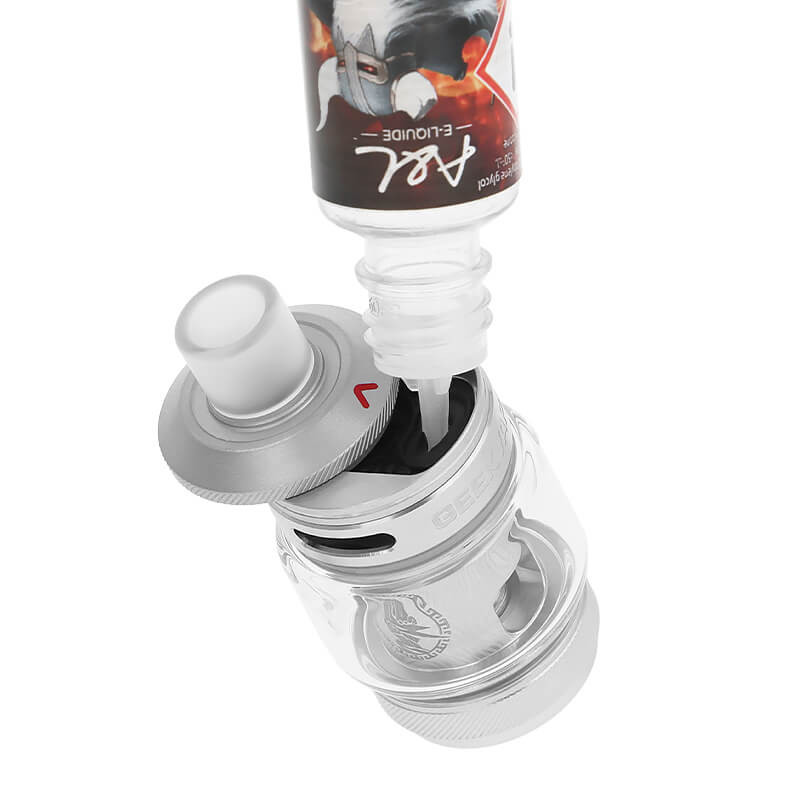

The filling of Geekvape's Z Nano 3 clearomizer

Box contents

• 1 Geekvape Z Nano 3 clearomizer
• 1 0.2ohm B Series coil (pre-installed)
• 1 0.4ohm B Series coil
• 1 spare 5ml Pyrex
• 1 spare 510 drip tip
• 1 set of spare pieces
• 1 user guide

The Z Nano 3 clearomizer is made by Geekvape.

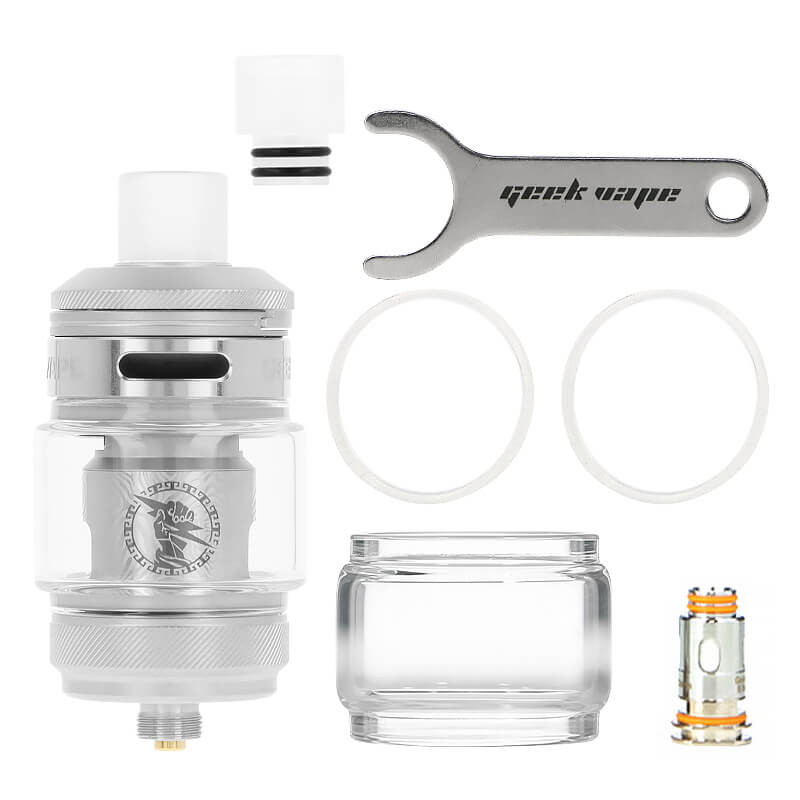

Box contents of Geekvape's Z Nano 3 clearomizer
