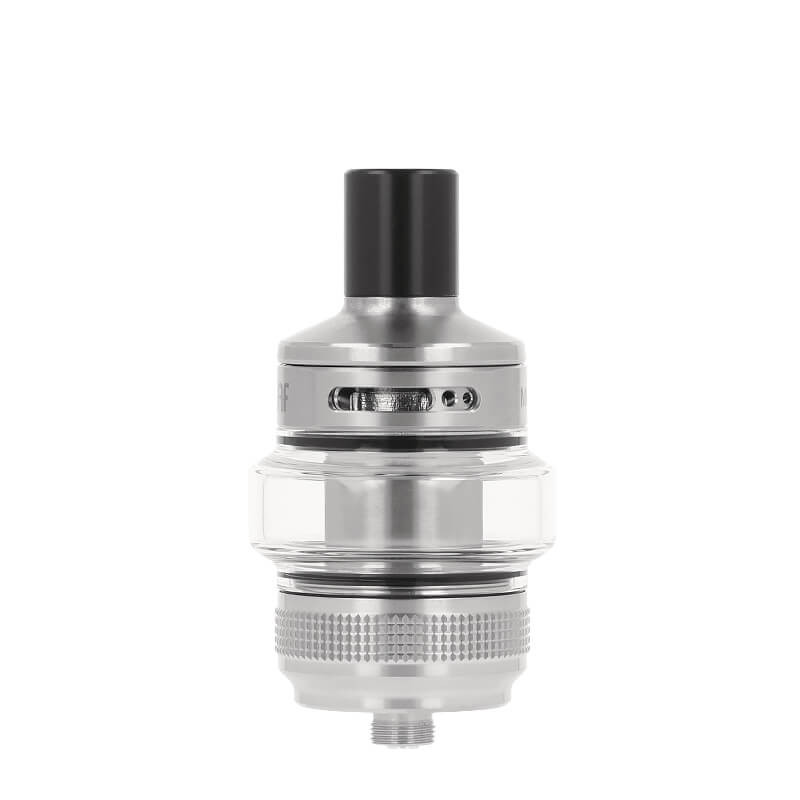

Eleaf Melo X Clearomizer

Particularly suited to a cloudy vape in direct inhaling (DL), the Melo X is still versatile, thanks to its compatibility with the collection of EC coils by Eleaf.

Its 510 drip tip is at the top of a bulb tank with a 5ml capacity.

The Melo X clearomizer presents a diameter of 26.5mm base, for a 32mm width with its bulb Pyrex.

The Melo X clearomizer with Voopoo's Vinci Spark 100 mod

The design of Melo X

Made in stainless steel, the Melo X measures 50.3mm in height for 32mm in width, with a base diameter of 26.5mm.

It is equipped with a bulb tank with a 5ml e-liquid capacity.

Its standard 510 pin enables it to connect with most mods on the market.

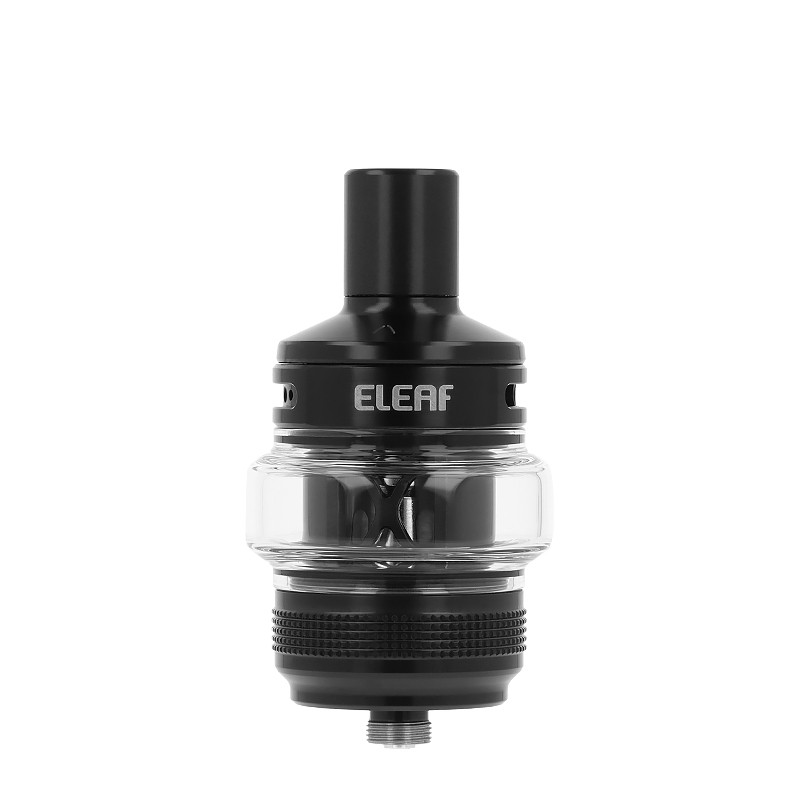

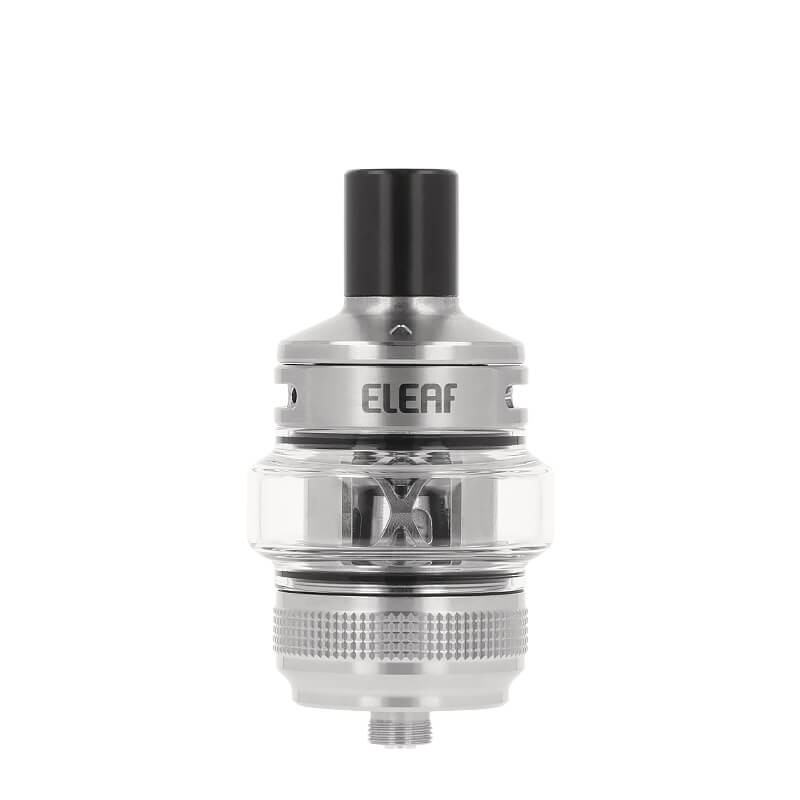

Eleaf's Melo X clearomizer

The EC-D Dual Mesh coils

Eleaf includes two EC-D coils in the Melo X box, thought for a rather airy draw in direct inhaling (DL) or restrictive direct inhaling (RDL).

This generation of Dual Mesh coils presents the advantage of delivering a great vapor quantity while procuring optimal flavor rendering.

According to your needs, select the coil value that suits you among:

• 1 EC-D Dual Mesh coil of 0.3ohm: to use between 30 and 45 watts, for a cloudy vape in direct inhaling
• 1 EC-D Dual Mesh coil of 0.5ohm: to use between 15 and 25 watts, for a tighter draw in restrictive direct inhaling (RDL)

Note that the Melo X clearomizer is also compatible with the collection of EC coils by Eleaf, for even more customization!

After two to three weeks of use, the EC-D coil will show some wear signs. It will be time to replace it with a new one.

For this:

1. Unscrew the clearomizer base
2. Take the coil out
3. Soak a new coil with some e-liquid drops
4. Insert it into its compartment in place of the old one
5. Screw the bottom part back
6. Fill the tank with e-liquid
7. Wait for some minutes before vaping to let the new coil be correctly primed with e-liquid

Air intakes at the top

Eleaf offers the possibility to adjust the airflow via a rotary ring located on the top part of the Melo X clearomizer.

This top airflow enables avoiding e-liquid leakages, while ensuring a good airflow distribution.

Simply pivot this ring to quickly alternate between a very airy or slightly more restrictive draw.

The airflow of Eleaf's Melo X clearomizer

A top-filling clearomizer

The Melo X presents a 5ml bulb Pyrex, fillable from the top. In other words, no need to take the clearomizer of the mod out to fill it with e-liquid!

You only need to:

1. Push the top cap to the mark
2. Insert the thin tip of your bottle into the filling hole
3. Softly pour the e-liquid up to three-quarters
4. Close the top cap

Is your coil new? Wait for 5 to 10 minutes before vaping!

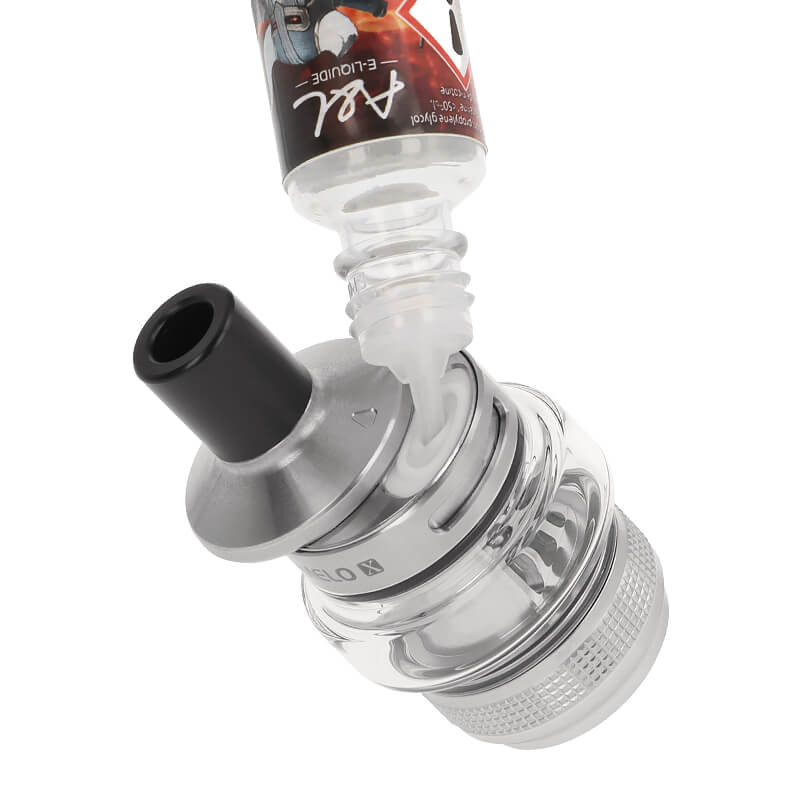

Filling Eleaf's Melo X clearomizer

Box contents

• 1 5ml Melo X clearomizer
• 1 0.5ohm EC-D Dual Mesh coil (pre-installed)
• 1 0.3ohm EC-D Dual Mesh coil
• 1 spare Pyrex
• 1 set of spare pieces
• 1 user guide

The Melo X clearomizer is made by Eleaf.

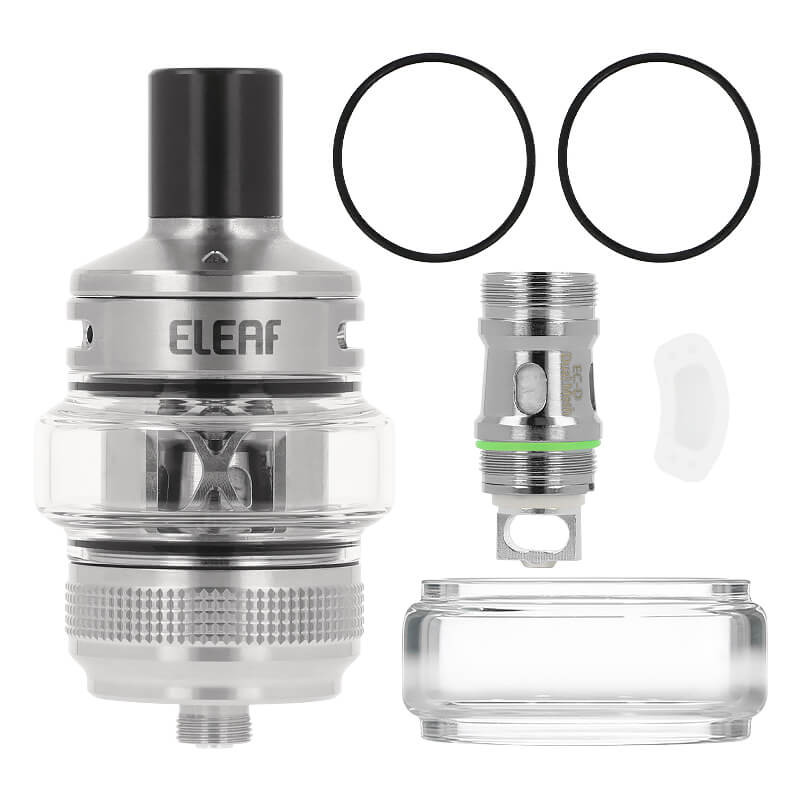

Box contents of Eleaf's Melo X clearomizer
