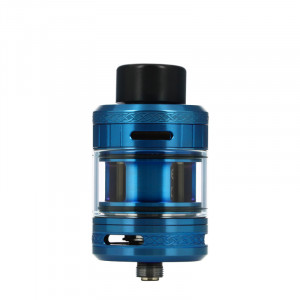

Hellvape Fat Rabbit V2 Sub Ohm Clearomizer

Produce huge clouds of vapour with the Fat Rabbit V2 Sub Ohm clearomizer and its airy DL draw!

Still dedicated to sub-ohm vape, the second version of the Fat Rabbit clearomizer is meant for enthusiasts of an airy draw. With a 28mm diameter, it matches all mods suited to a draw in direct inhaling (DL).

Its straight 4ml tank can be swapped for a round 5ml tank if you wish. The latter is included in the Fat Rabbit V2 kit. You can also choose between two types of Hellvape’s P Coils, either the 0.15ohm or 0.2ohm coils.

Hellvape’s Fat Rabbit V2 clearomizer on Geek Vape’s Aegis L200 mod

The design of Fat Rabbit V2

With dimensions of 50.7x28mm, the Fat Rabbit V2 has a 25mm base that quickly widens to 28mm. It will therefore connect to all your mods that accept this diameter (even 30mm with its round tank).

Included with a straight Pyrex tube, you can equip your Fat Rabbit V2 with its included round tank.

The top and bottom of the tank each feature a Hellvape engraving, which leaves room for not one, but six air intake windows. The bottom of the Fat Rabbit V2 has a 510 pin for a standard connector, while the top features an 810 drip tip for a very airy vape.

Hellvape’s Fat Rabbit V2 clearomizer

The P coils

Your Fat Rabbit V2 comes with Hellvape P7 coils. Available in two values, 0.15 and 0.2 ohms, you can choose between the two included in the clearomizer box. Made from high-quality organic cotton, the P Coils feature a large mesh structure, allowing for rapid heating and optimal flavor delivery.

This clearomizer is also compatible with GTi coils from Vaporesso.

Once your coil is installed, please note that:

• The P7-02 0.2ohm KA1 Meshed Coil is for use between 50 and 60 watts
• The P7-01 0.15ohm KA1 Meshed Coil (pre-installed) is for use between 60 and 70 watts

How to change the coil of the Fat Rabbit V2 Sub Ohm?

After two to three weeks of use, your coil will probably be worn out (weaker flavors, burnt taste, etc). You’ll have to change it for a new one. You can buy a spare set of P Coils in the coil value of your choice.

Here’s how to change the coil :

1. Remove the clearomizer from your mod
2. Unscrew its lower part
3. Pull out the old coil
4. Soak a new coil with a few drops of e-liquid, then insert it into its slot
5. Screw the clearomizer’s lower part back on
6. Fill up the tank with e-liquid
7. Screw the Fat Rabbit V2 back on your mod
8. Wait 5 to 10 minutes for the new coil to prime itself before vaping

Six air intakes

Hellvape is targeting fans of airy vaping with its dual airflow system. The Fat Rabbit V2 has three air intake windows on each of the rings surrounding the tank, giving a total of six airflow holes.

You can therefore customize the airflow of your clearomizer to suit your preferences, depending on the type of draw you want (more or less airy). These air intakes also cool the coil, the tank, and the vapor delivered.

The dual airflow system of Hellvape’s Fat Rabbit V2 clearomizer

How to fill the Fat Rabbit V2 Sub Ohm?

Whether you choose to equip your clearomizer with the straight 4ml Pyrex tank (pre-installed) or the round 5ml tank, you'll be filling the tank from above.

Although your Fat Rabbit V2 has a large e-liquid capacity (4 or 5 ml), you will inevitably need to refill it during the day. Hellvape has designed its clearomizer to make this task much easier, with a top filling system.

Therefore, there is no need to remove the Fat Rabbit V2 from your mod to refill it! Proceed as follows to do so:

1. Turn the top cap by a quarter turn to access the three filling holes
2. Insert the tip of your bottle of e-liquid into one of these three holes. Be careful not to pour any liquid into the middle chimney!
3. Fill up the tank with e-liquid, never to the brim
4. Put the top cap back on, then turn it by a quarter turn to close it
5. Remember to wait 5 to 10 minutes before vaping if you’re using a new coil

The filling holes of Hellvape’s Fat Rabbit V2 clearomizer

Contents

• The Fat Rabbit V2
• A pre-installed straight Pyrex tank of 4ml
• A spare round Pyrex tank of 5ml
• One P7-01 KA1 Meshed coil of 0.15ohm (pre-installed)
• One P7-02 KA1 Meshed coil of 0.2ohm
• A set of spare parts
• A user guide

The Fat Rabbit V2 Sub Ohm clearomizer is manufactured by Hellvape.

The contents of Hellvape’s Fat Rabbit V2 Sub Ohm clearomizer kit
