Aspire Revolto S Mod

Discover the Revolto S mod: power at your fingertips

The Revolto S is a mod designed to deliver a maximum power output of 220W and is powered by two 18650 batteries (batteries sold separately).

Its 26mm-diameter base is compatible with all your clearomizers and atomizers featuring a standard 510 thread.

The high-performance ASP 5 chipset from Aspire gives you access to several adjustment modes, which you can select based on your needs.

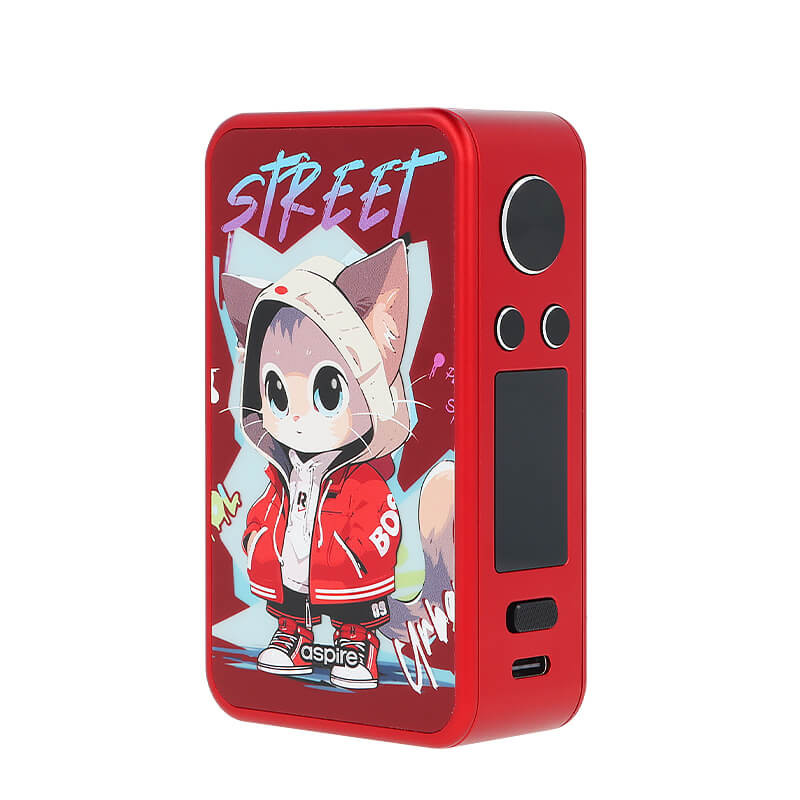

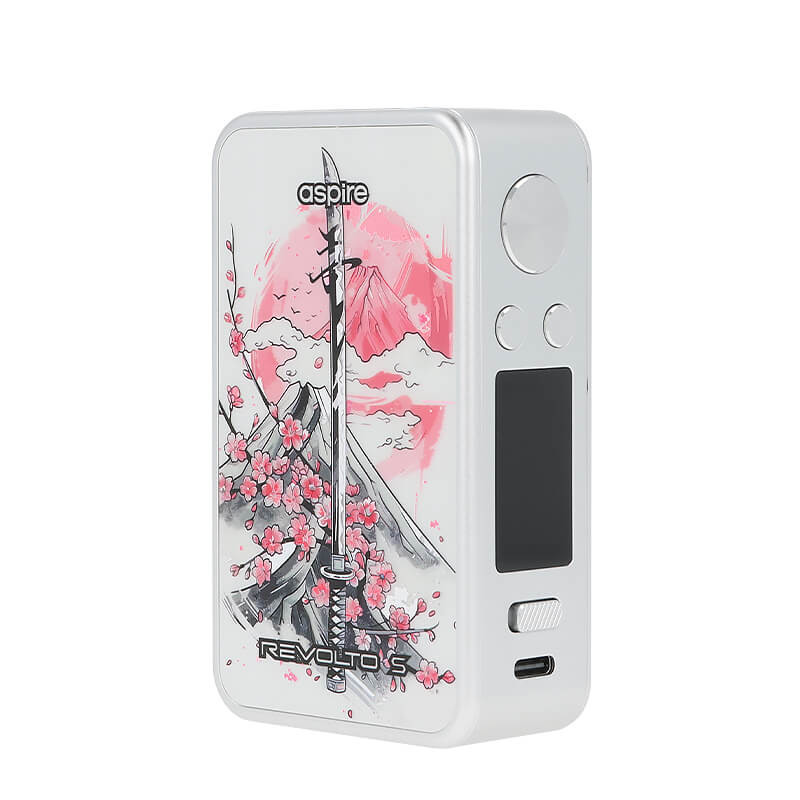

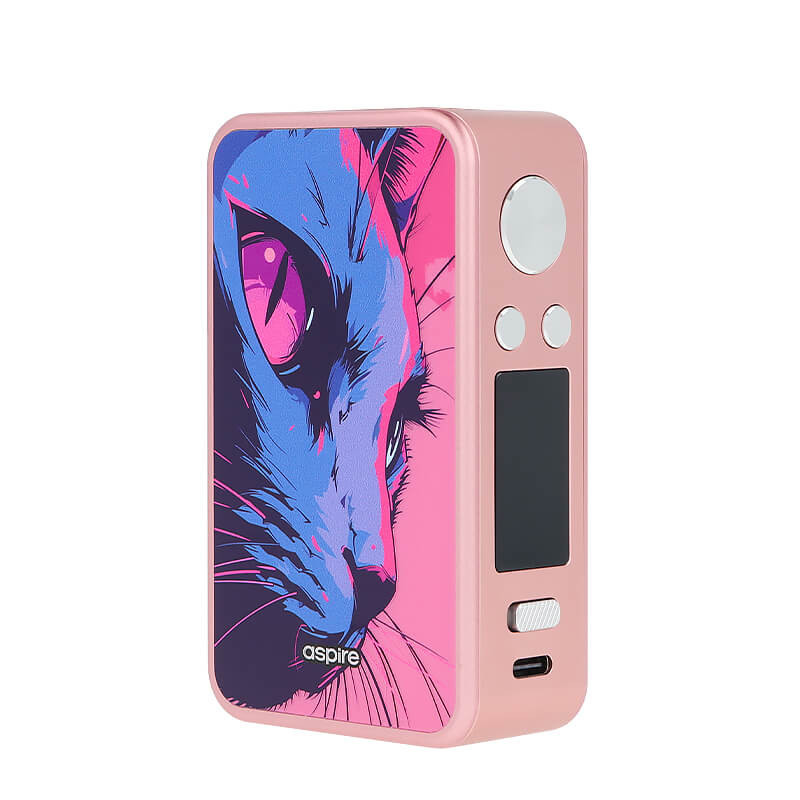

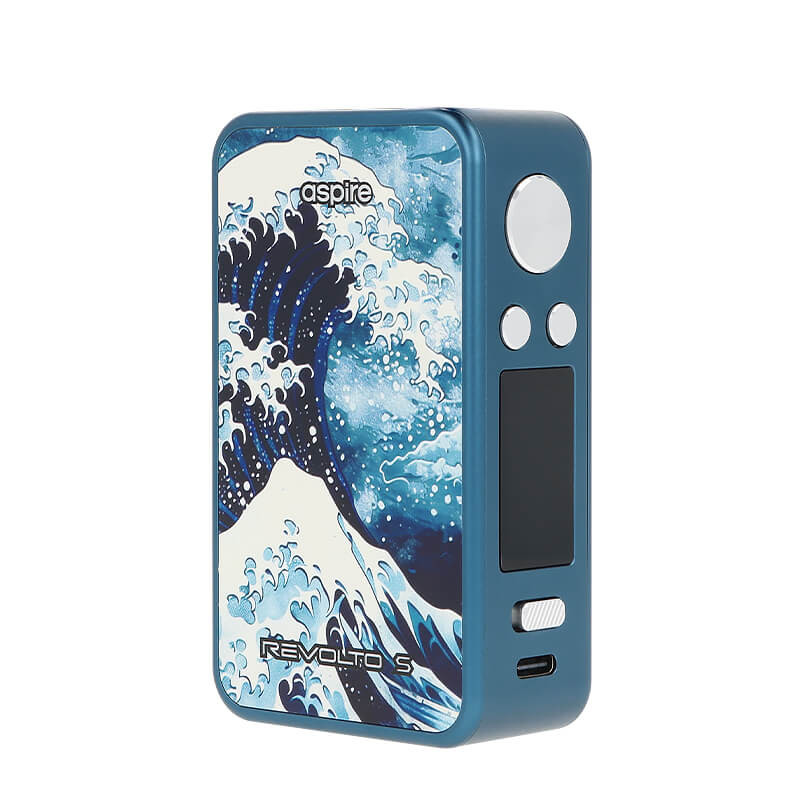

In terms of design, the manufacturer has equipped it with two magnetic panels featuring Japanese-inspired illustrations.

Aspire's Revolto S mod with Lost Vape's Centaurus clearomizer

The Revolto S mod design

The S version of the Revolto mod retains its magnetic panel system, one of which covers the dual-battery compartment.

This e-cig mod measures 90x54x27mm and weighs 90g without the battery.

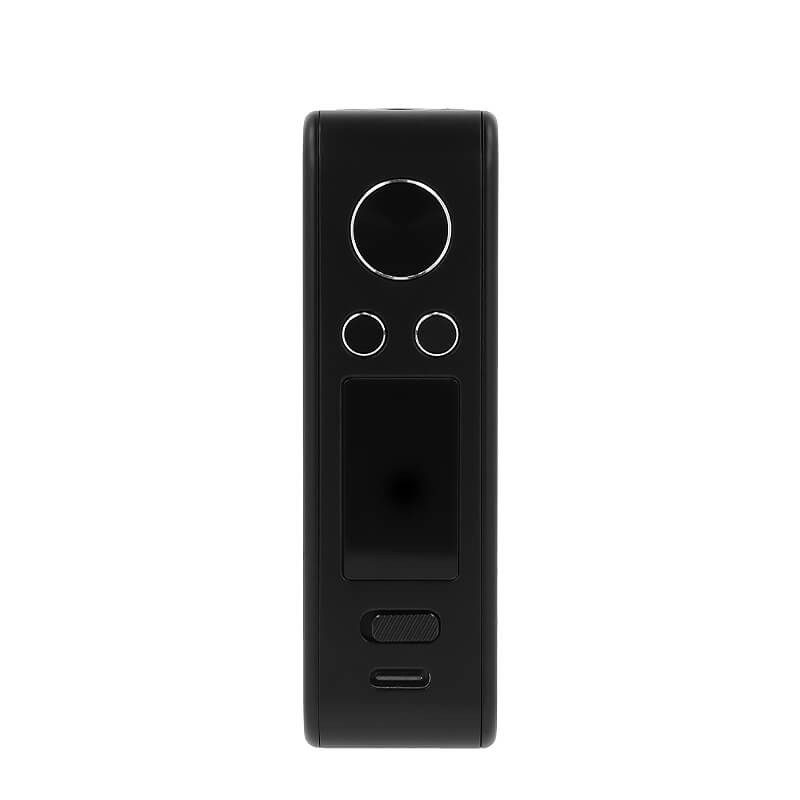

Its main panel features the following, from top to bottom:

• 1 Fire button
• 2 Adjustment buttons
• 1 0.96'' TFT screen
• 1 ON/OFF switch
• 1 USB-C port

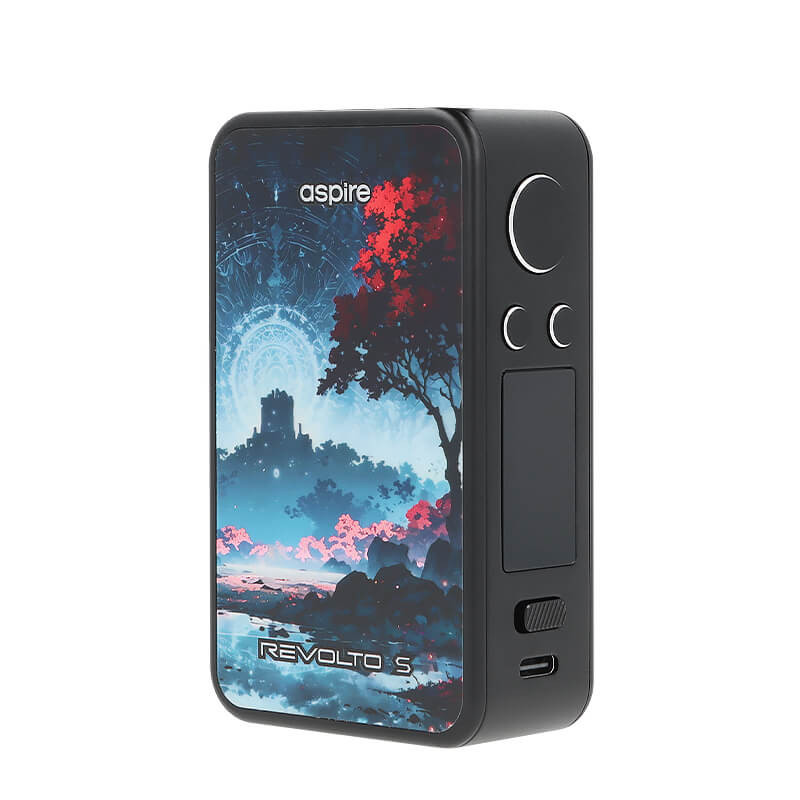

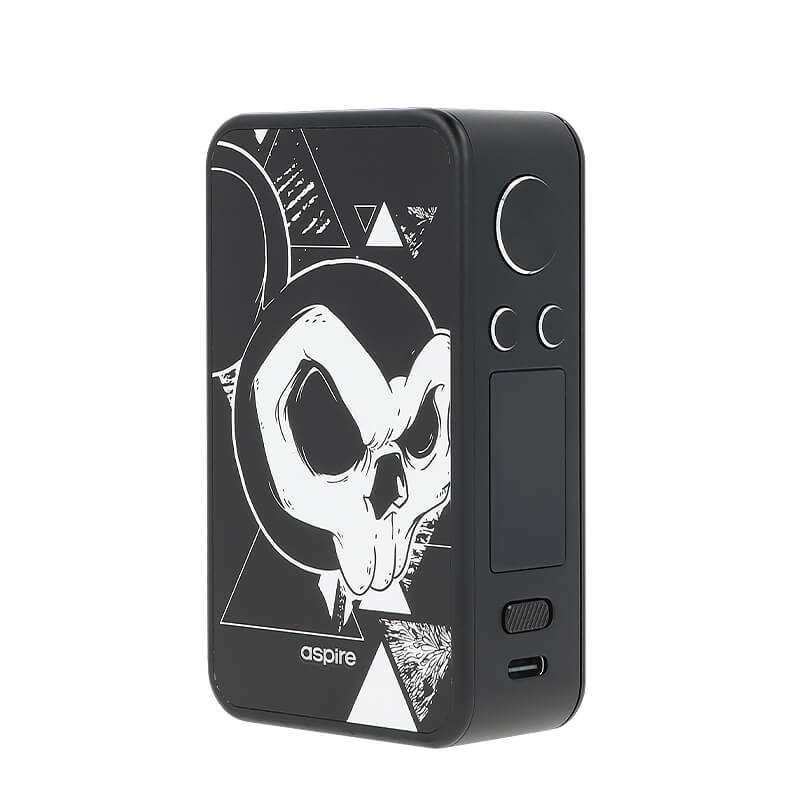

Aspire's Revolto S mod

Diverse functioning modes

The Revolto S mod has the ASP 5 chipset by Aspire.

Not only does the latter have all the necessary safety features for your mod, but it also enables you to access different setting modes:

• WATT Mode: Manually adjust the power, from 5 to 220W
• VOLT Mode: Set the output voltage from 0.5 to 9V
• BYPASS Mode: Vape in unregulated mode; the power output depends on the coil value and the charge level of your batteries
• TEMP (TC) Mode: Set the temperature based on the type of coil wire used (Ni, Ti, SS), from 100 to 315°C
• CPS Mode: Define a power curve to customize your vape

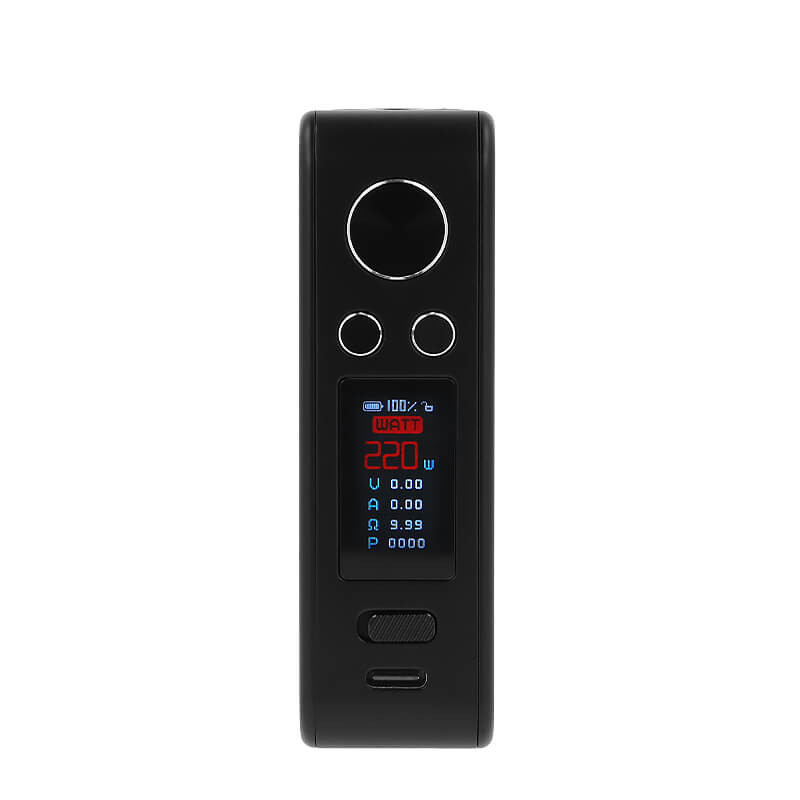

The screen of Aspire's Revolto S mod

The Revolto S mod is equipped with an ON/OFF switch that allows you to turn your mod on or off.

This slide switch is located above the USB-C port.

Please note that there are also two ways to lock the device:

• Lock the power setting on your Revolto S by holding down the '+' and '-' buttons
• Lock all buttons on the device by pressing the Power button three times in a row

The ON/OFF switch of Aspire's Revolto S mod

A supply in dual battery

In terms of battery life, the Revolto S mod is powered by two 18650-format batteries (not included).

The battery compartment is accessible by removing one of the two magnetic panels.

Be sure to follow the polarity markings indicated on the bottom of the compartment when inserting your batteries.

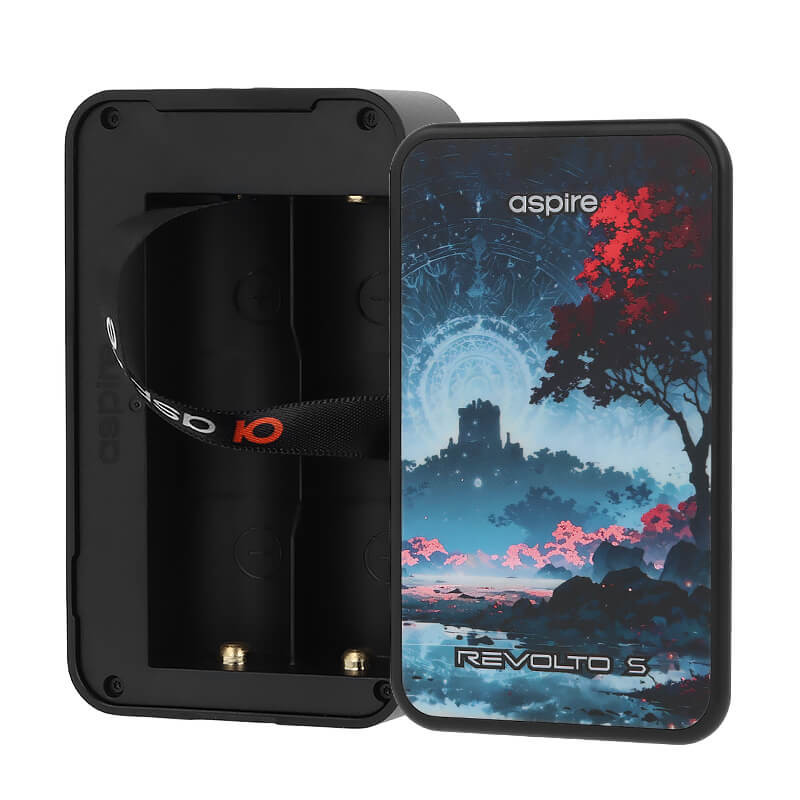

The 18650 dual battery compartment of Aspire's Revolto S mod

Aspire has equipped the Revolto S with a USB-C port that lets you recharge your device wherever you are.

To do so, connect the included cable to the port located below the ON/OFF button on the front panel.

However, we recommend that you recharge your batteries using an external charger whenever possible, particularly to preserve their lifespan.

The USB-C port of Aspire's Revolto S mod

Box contents

• 1 220W Revolto S mod
• 1 USB-C cable
• 1 user guide

The Revolto S mod is made by Aspire. It is sold without batteries.

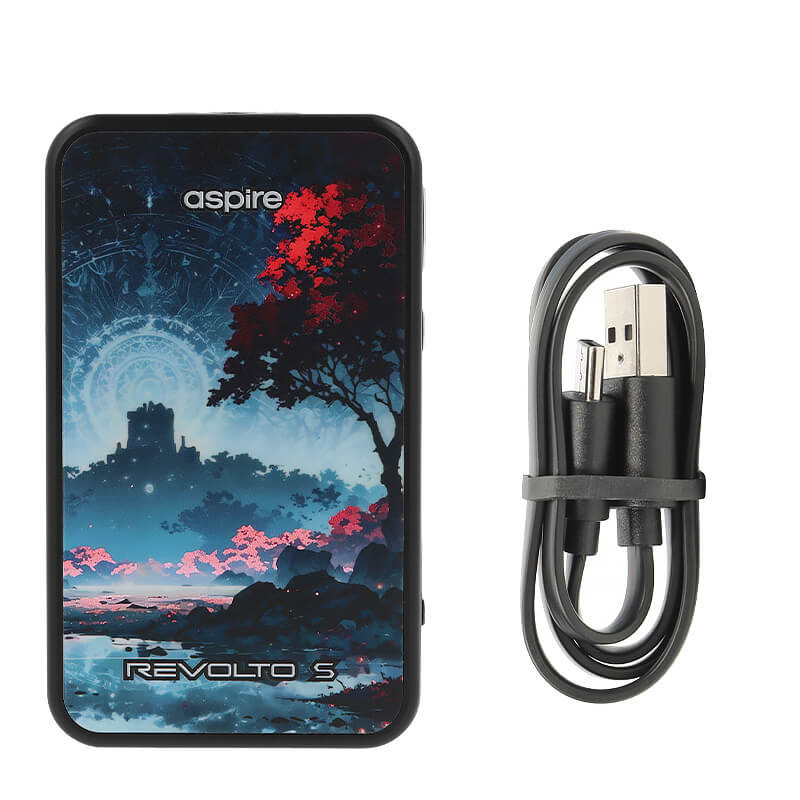

Box contents of Aspire's Revolto S mod
